Documents: 3RT10561AB36

Datasheet

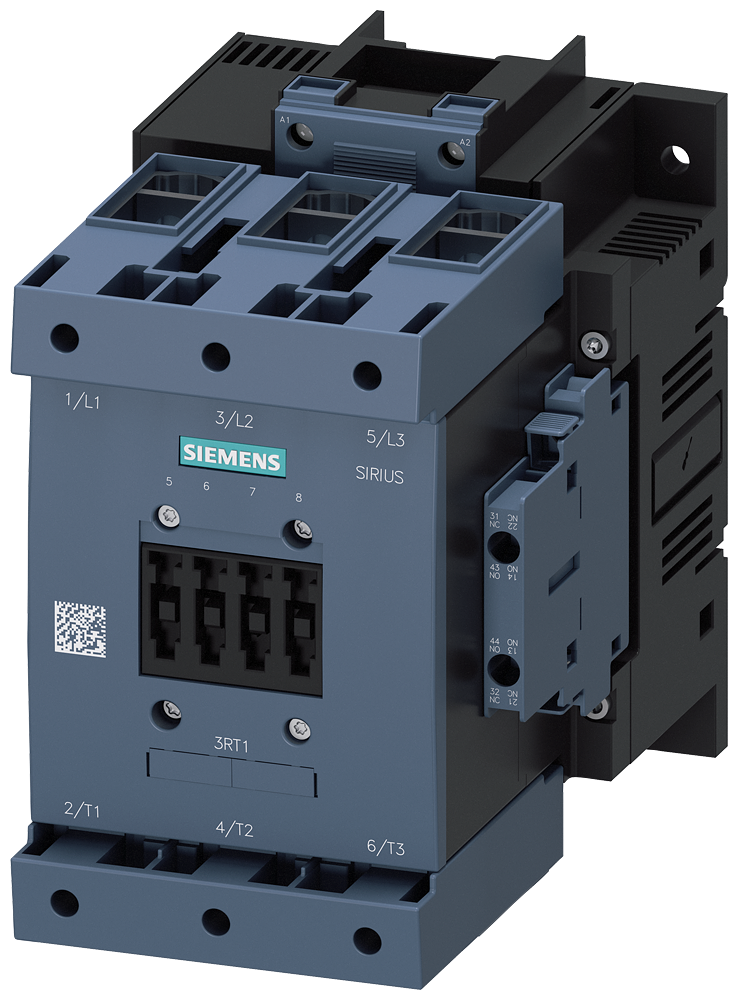

3RT10561AB36 | CONTACTOR AC3 | 90KW/400V 2NO+2NC UC23-26V | Siemens Electrical

CONTACTOR, 90KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 23-26V AUX. CONTACTS 2NO+2NC 3-POLE, SIZE S6E BAR CONNECTIONS CONVENTIONAL OPERATING MECHAN. WITH BOX TERMINAL 3RT19 56-4G TILL 120 MM

Brand: Siemens ElectricalSKU: 3RT10561AB36

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10561AB36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10561AB36

Specifications

Item Number	3RT10561AB36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	215 A
Rated operation current Ie at AC-3; 400 V	185 A
Rated operation current Ie at AC-4; 400 V	160 A
Rated operation power at AC-3; 400 V	90 kW
Rated operation power at AC-4; 400 V	90 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	8.97400 LB
Width	10.440 IN
