Documents: 3RT1056-6NP38-0PA5

Datasheet

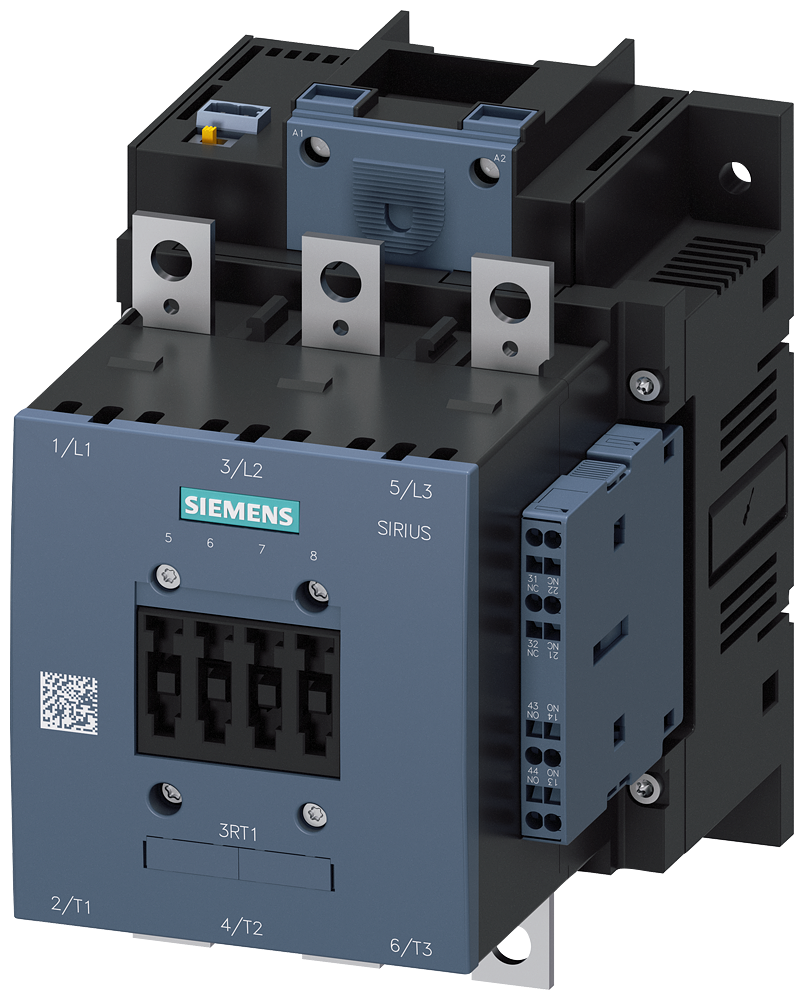

3RT1056-6NP38-0PA5 | CONTACTOR S6 185A 200-277VUC 3P BAR | Siemens Electrical

Contactor, 90KW/400v/AC-3 AC/DC operation uc 200-277v auxil. contacts 2NO+2NC lateral, solid-state op. mechan 3 pole, size s6 rail connections drive electronic with sps interface 24V DC

Brand: Siemens ElectricalSKU: 3RT1056-6NP38-0PA5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1056-6NP38-0PA5

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1056-6NP38-0PA5

Specifications

Item Number	3RT1056-6NP38-0PA5
Brand	Siemens Electrical
freeship	upsground
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	215 A
Rated operation current Ie at AC-3; 400 V	185 A
Rated operation current Ie at AC-4; 400 V	160 A
Rated operation power at AC-3; 400 V	90 kW
Rated operation power at AC-4; 400 V	90 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	3.500 LB
Width	7.490 IN
