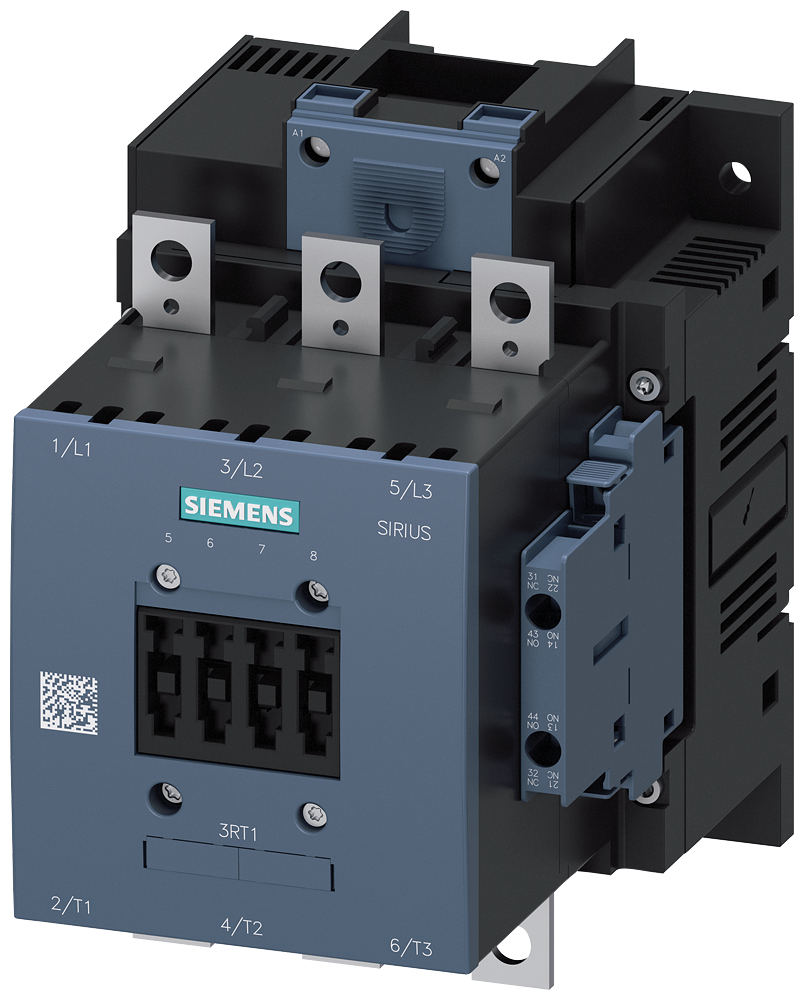

3RT1056-6AR36 | CONTACTOR S6 185A 440-480VUC 3P BAR | Siemens Electrical

Drive conventional rail connections 3 pole, size s6 auxil. contacts 2NO+2NC AC/DC operation uc 440-480v contactor, 90KW/400v/AC-3

Brand: Siemens ElectricalSKU: 3RT1056-6AR36

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT1056-6AR36

Item Number	3RT1056-6AR36
Brand	Siemens Electrical
Height	7.250 IN
Length	7.5 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	440 V
Rated control supply voltage Us at AC 60HZ	440 V
Rated control supply voltage Us at DC	440 V
Rated operation current Ie at AC-1; 400 V	215 A
Rated operation current Ie at AC-3; 400 V	185 A
Rated operation current Ie at AC-4; 400 V	160 A
Rated operation power at AC-3; 400 V	90 kW
Rated operation power at AC-4; 400 V	90 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.700 LB
Width	7.350 IN
