Documents: 3RT10556PF35

Datasheet

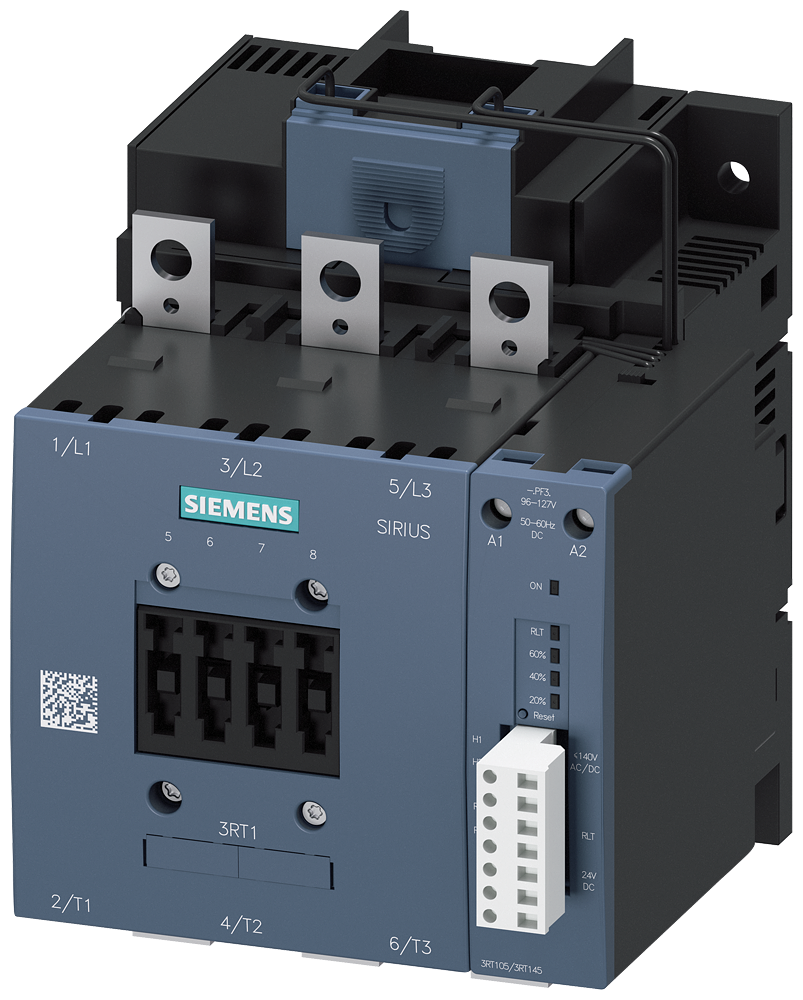

3RT10556PF35 | CONTACTOR S6 150A 96-127VUC 3P RLT | Siemens Electrical

CONTACTOR 75KW/400V/AC-3 AC(40...60HZ)/ DC OPERATION UC 96-127V AUX CONTACTS 1NO+1NC 3-POLE SIZE S6 BAR CONNECTIONS ELECTRONIC OPERATING MECHANISM WITH PLC/SIMOCODE INTERFACE AND REMAIN. LIFETIME INDICATOR

Brand: Siemens ElectricalSKU: 3RT10556PF35

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10556PF35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10556PF35

Specifications

Item Number	3RT10556PF35
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	8.81800 LB
Width	10.440 IN
