Documents: 3RT10556AP30

Datasheet

3RT10556AP30 | CONTACTOR S6 150A 220-240VUC 3P BAR | Siemens Electrical

CONTACTOR, 75KW/400V/AC-3, AC(40...60HZ)/DC OPERATION UC 220...240V W/O AUXILIARY CONTACTS 3-POLE, SIZE S6 BAR CONNECTIONS CONVENTIONAL OPERATING MECHAN.

Brand: Siemens ElectricalSKU: 3RT10556AP30

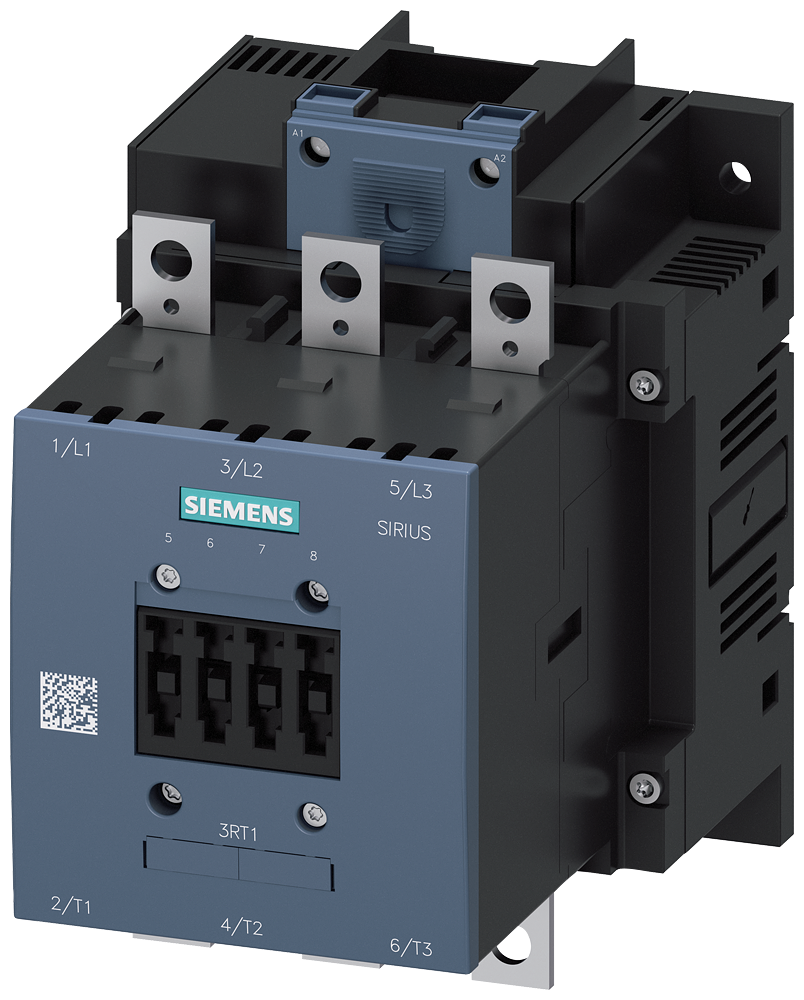

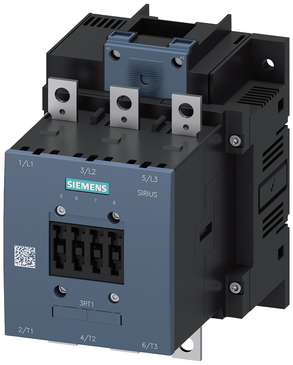

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10556AP30

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10556AP30

Specifications

Item Number	3RT10556AP30
Brand	Siemens Electrical
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	220 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.18700 LB
Width	7.490 IN
