Documents: 3RT10552XB460LA2

Datasheet

3RT10552XB460LA2 | Contactor AC3:75 kW/400V 2NO+2NC DC24V | Siemens Electrical

Power contactor, AC-3e/AC-3 150 A, 75 kW / 400 V Uc: 24 V DC x (0.7-1.25) PLC input 24-110 V DC 3-pole, auxiliary contacts 2 NO + 2 NC drive: electronic main circuit: busbar control and auxiliary circuit: spring-loaded terminal extended rated condition railroad IEC 60077

Brand: Siemens ElectricalSKU: 3RT10552XB460LA2

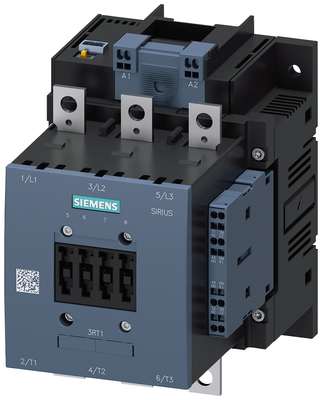

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10552XB460LA2

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10552XB460LA2

Specifications

Item Number	3RT10552XB460LA2
Brand	Siemens Electrical
Height	7.200 IN
Length	7.760 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	7.51200 LB
Width	5.240 IN
