Documents: 3RT10552NF36

Datasheet

3RT10552NF36 | CONTACTOR. 75 KW / 400 V / AC-3 | Siemens Electrical

Contactor. 75KW/400v/AC-3 AC(40...60HZ)/DC operation uc 96-127v auxiliary contacts 2NO+2NC 3-pole. size s6 bar connections electron. operating mechanism with 24 V DC plc interface cage clamp connection

Brand: Siemens ElectricalSKU: 3RT10552NF36

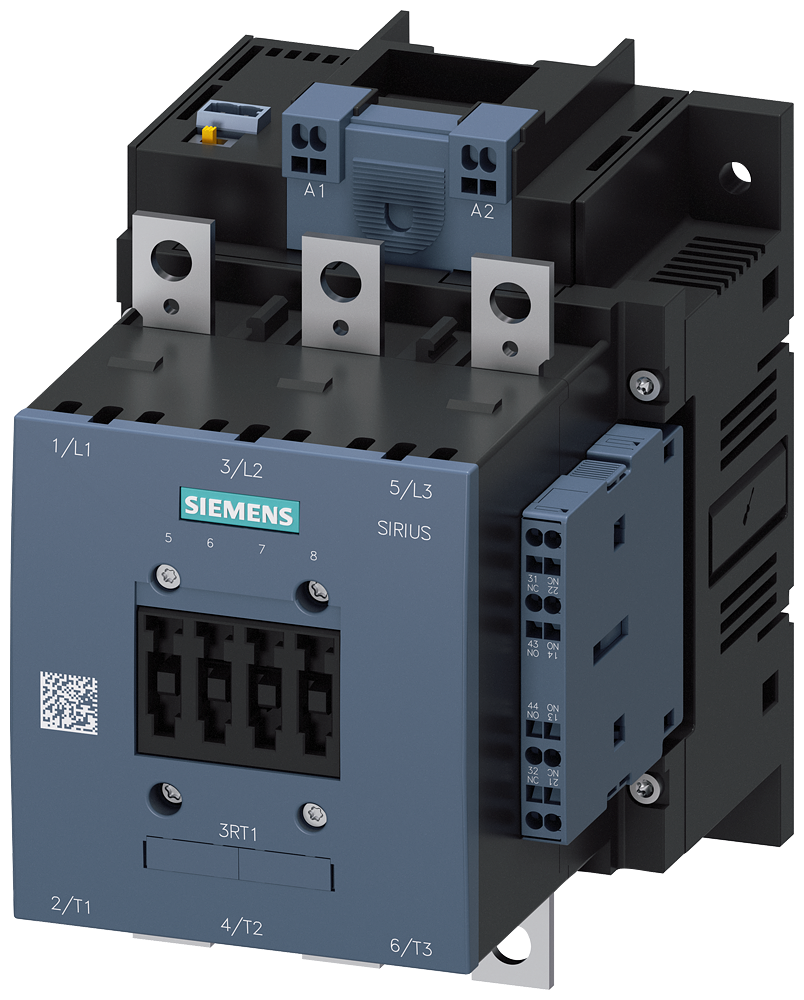

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10552NF36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10552NF36

Specifications

Item Number	3RT10552NF36
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.34800 LB
