3RT10551AF36 | CONTACTOR S6 150A 110-127VUC 3P BOX LUG | Siemens Electrical

Contactor, 75KW/400v/AC-3, AC(40...60HZ)/DC operation AC/DC 110...127v auxil. contacts 2NO+2NC 3-pole, size s6 with box terminal

Brand: Siemens ElectricalSKU: 3RT10551AF36

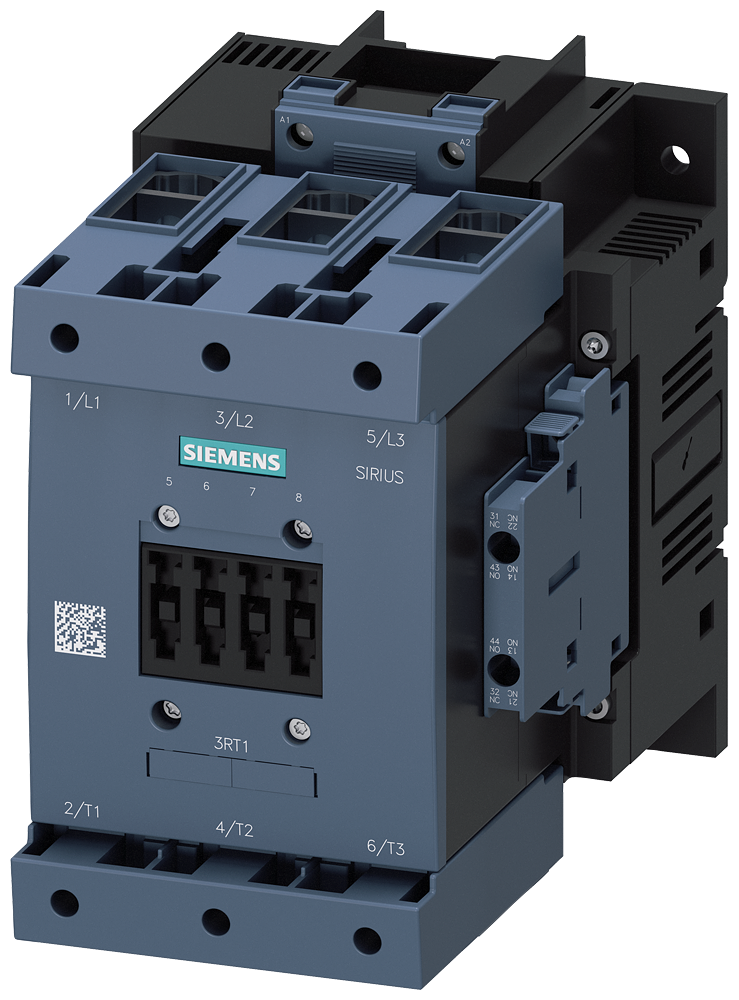

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT10551AF36

Item Number	3RT10551AF36
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	110 V
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	8.88500 LB
