3RT10551AB36 | CONTACTOR S6 150A 23-26VUC 3P BX LUG | Siemens Electrical

Contactor, 75KW/400v/AC-3, AC(40...60HZ)/DC operation uc 23...26v auxil. contacts 2NO+2NC 3-pole, size s6 with box terminal

Brand: Siemens ElectricalSKU: 3RT10551AB36

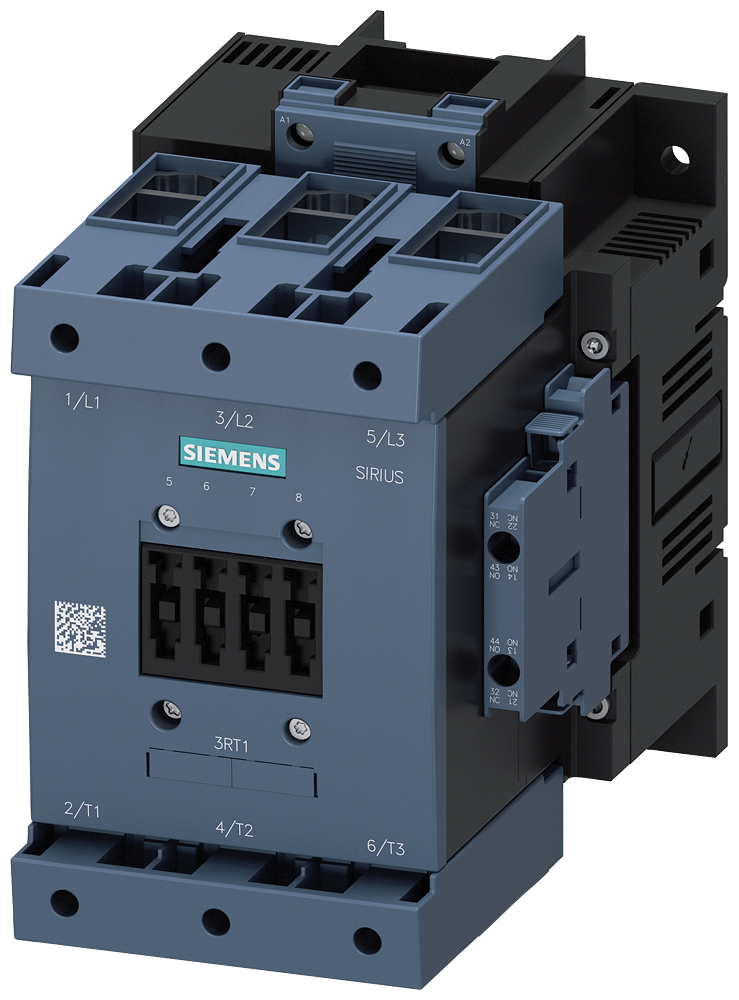

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT10551AB36

Item Number	3RT10551AB36
Brand	Siemens Electrical
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	8.88600 LB
Width	10.440 IN
