3RT1055-6AT36 | CONTACTOR S6 150A 575-600VUC 3P BAR | Siemens Electrical

Drive conventional rail connections 3 pole, size s6 auxil. contacts 2NO+2NC AC/DC operation uc 575-600v contactor, 75KW/400v/AC-3

Brand: Siemens ElectricalSKU: 3RT1055-6AT36

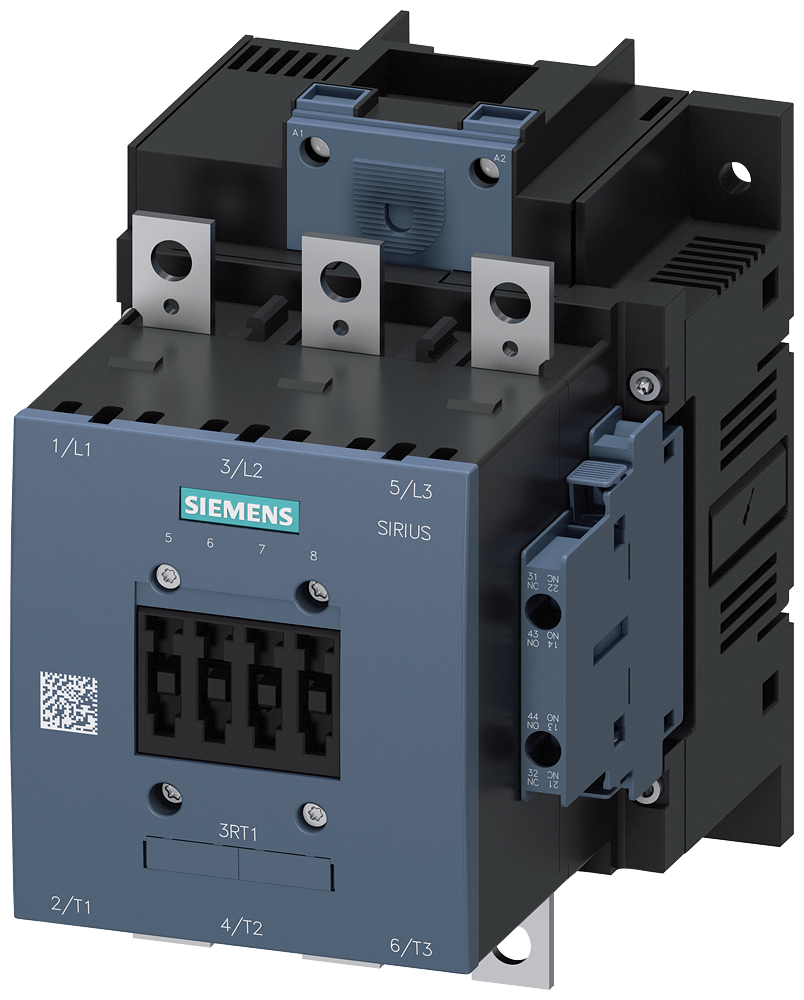

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT1055-6AT36

Item Number	3RT1055-6AT36
Brand	Siemens Electrical
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	575 V
Rated control supply voltage Us at AC 60HZ	575 V
Rated control supply voltage Us at DC	575 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.35500 LB
Width	7.490 IN
