Documents: 3RT1055-6AR36
3RT1055-6AR36 | CONTACTOR S6 150A 440-480VUC 3P BAR | Siemens Electrical
Drive conventional rail connections 3 pole, size s6 auxil. contacts 2NO+2NC AC/DC operation uc 440-480v contactor, 75KW/400v/AC-3

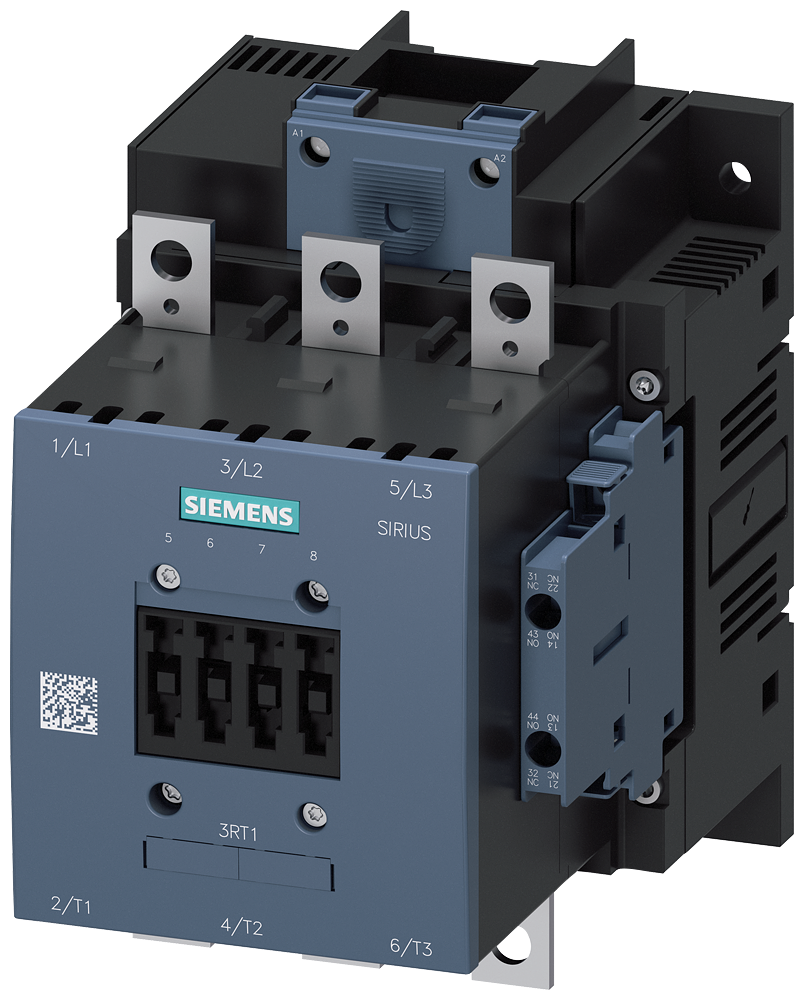

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT1055-6AR36
Overview Details for 3RT1055-6AR36
Specifications
Item Number | 3RT1055-6AR36 |
Brand | Siemens Electrical |
Height | 7.130 IN |
Length | 5.080 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 440 V |
Rated control supply voltage Us at AC 60HZ | 440 V |
Rated control supply voltage Us at DC | 440 V |
Rated operation current Ie at AC-1; 400 V | 185 A |
Rated operation current Ie at AC-3; 400 V | 150 A |
Rated operation current Ie at AC-4; 400 V | 132 A |
Rated operation power at AC-3; 400 V | 75 kW |
Rated operation power at AC-4; 400 V | 75 kW |
Rated operation power NEMA | 91.93734375 kW |
Type of electrical connection of main circuit | Rail connection |
Voltage type for actuating | AC/DC |
Weight | 7.450 LB |
Width | 7.490 IN |
