Documents: 3RT1055-6AF36-3PA0

Datasheet

3RT1055-6AF36-3PA0 | CONTACTOR S6 150A 110-127VUC 3P BAR | Siemens Electrical

Contactor 75KW/400v/AC-3, AC(40...60HZ)/ DC operation uc 110...127v auxil. contacts 2NO+2NC 3-pole size s6 bar connections conventional operating mechan. screw terminal

Brand: Siemens ElectricalSKU: 3RT1055-6AF36-3PA0

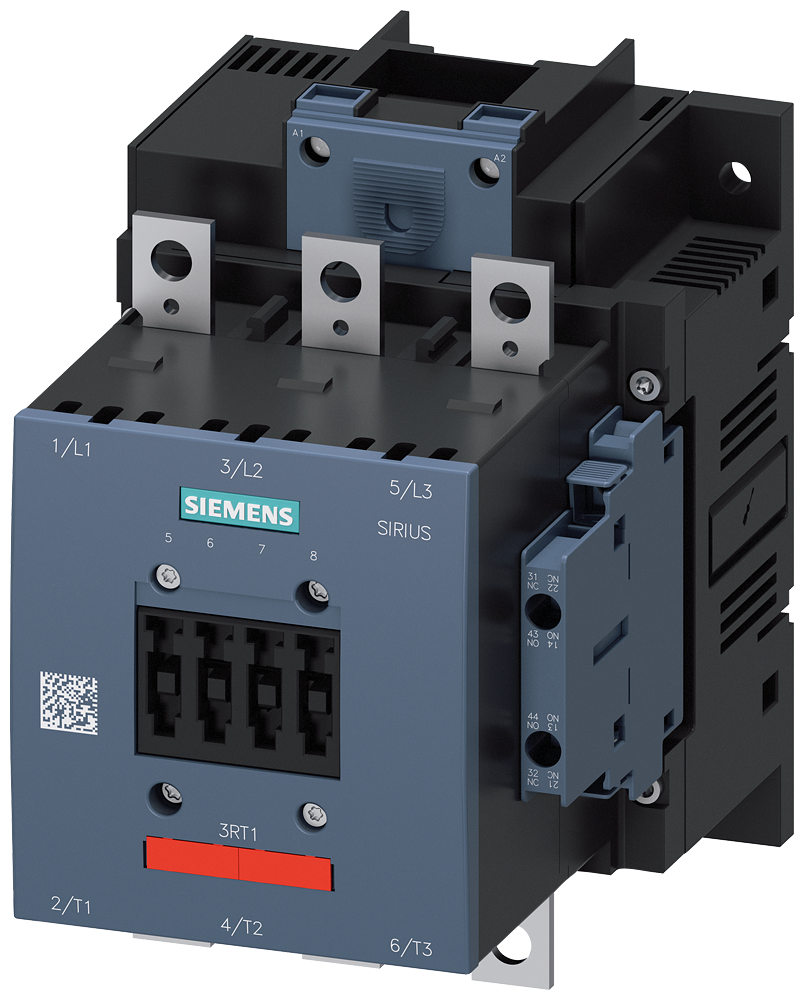

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1055-6AF36-3PA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1055-6AF36-3PA0

Specifications

Item Number	3RT1055-6AF36-3PA0
Brand	Siemens Electrical
Height	5.200 IN
Length	7.850 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	110 V
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.720 LB
Width	9.550 IN
