Documents: 3RT10546SF36

Datasheet

3RT10546SF36 | Contact. 55 kW/400V 2NO+2NC F-PLC-IN | Siemens Electrical

Power contactor. AC-3 115 A. 55 kW / 400 V Coil AC 50/60 Hz and DC 96-127 V x (0.8-1.1) F-PLC input 24 V DC 3-pole size S6 Auxiliary contacts 2 NO + 2 NC Main circuit: Busbar Control and auxiliary circuit: screw terminal

Brand: Siemens ElectricalSKU: 3RT10546SF36

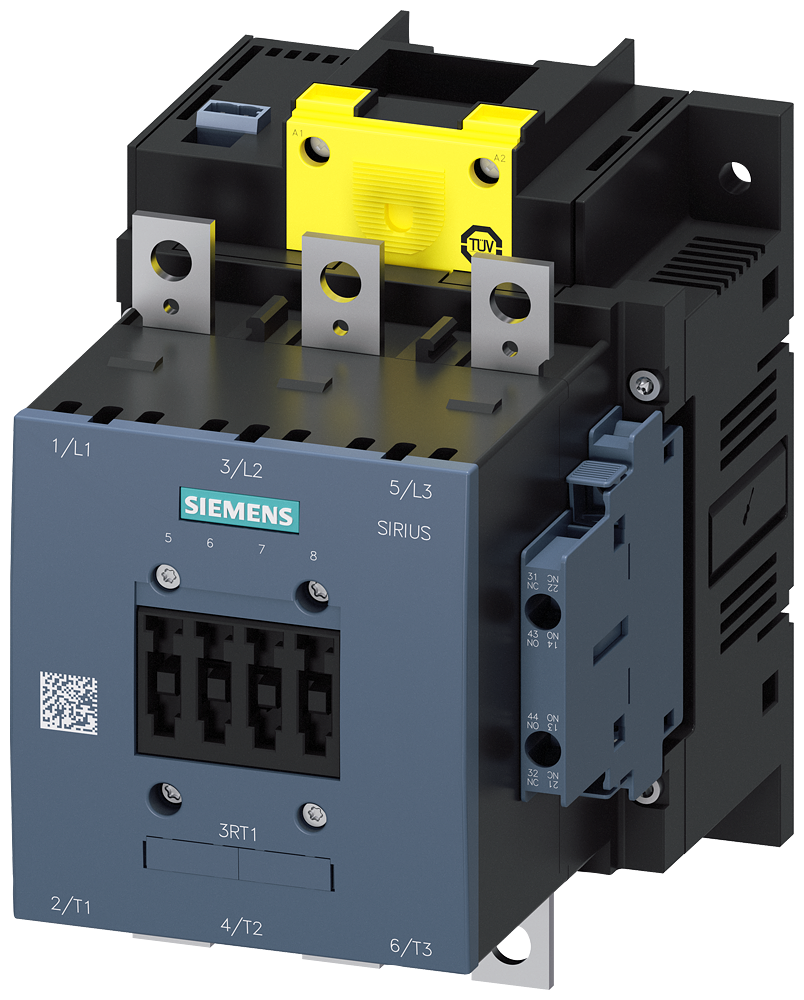

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10546SF36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10546SF36

Specifications

Item Number	3RT10546SF36
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.26500 LB
