3RT10546PP35 | CONTACTOR | 55KW/400V/AC-3 | 1NO/1NC | Siemens Electrical

CONTACTOR, 55KW/400V/AC-3, AC(40...60HZ)/DC OPERATION UC 200...277V AUXIL. CONTACTS 1NO+1NC 3-POLE, SIZE S6 BAR CONNECTIONS ELECTRONIC OPERATING MECHANISM WITH PLC/SIMOCODE INTERFACE AND REMAIN. LIFETIME INDICATOR

Brand: Siemens ElectricalSKU: 3RT10546PP35

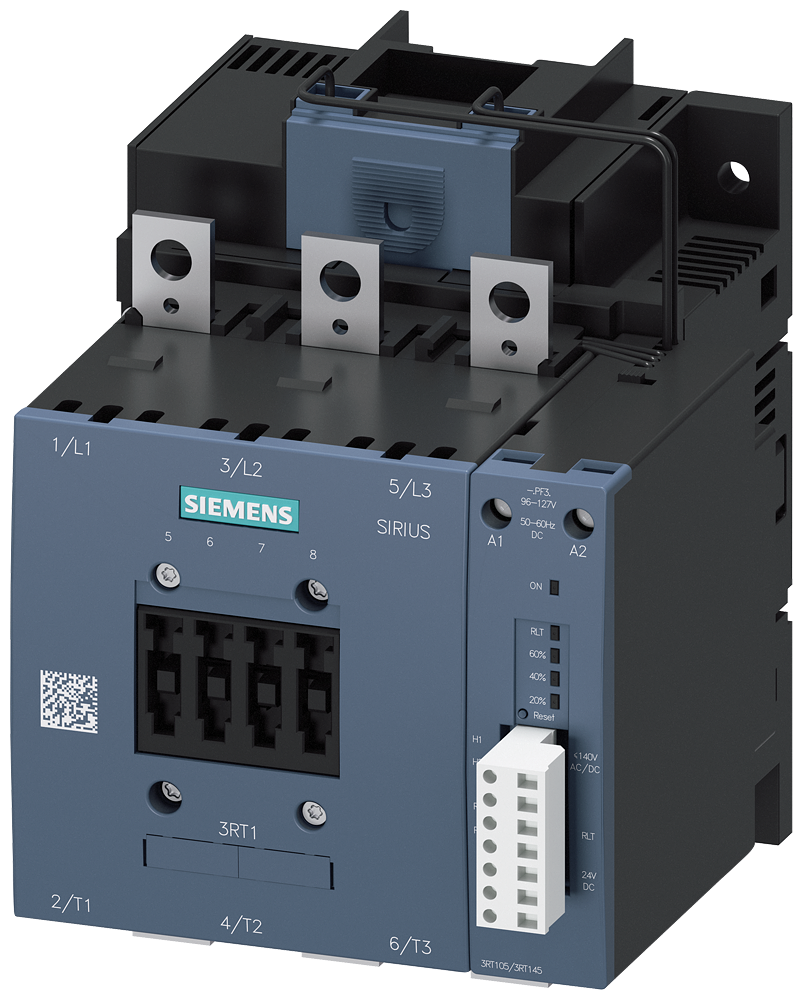

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10546PP35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10546PP35

Specifications

Item Number	3RT10546PP35
Brand	Siemens Electrical
Height	9.21300 IN
Length	7.71700 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	8.49300 LB
Width	10.43400 IN
