Documents: 3RT10546NF363PA0

Datasheet

3RT10546NF363PA0 | CONTACTOR S6 115A 96-127VUC 2NO/2NC FIX | Siemens Electrical

CONTACTOR, 55KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 96...127 V AUXIL. CONTACTS 2NO+2NC 3-POLE, SIZE S6 BAR CONNECTIONS ELECTRONIC OPERATING MECHANISM WITH PLC INTERFACE 24V DC SCREW TERMINAL AUX. 2NO+2NC SIDE LEFT+RIGHT DIN 50012, PERMANENTLY MOUNTED

Brand: Siemens ElectricalSKU: 3RT10546NF363PA0

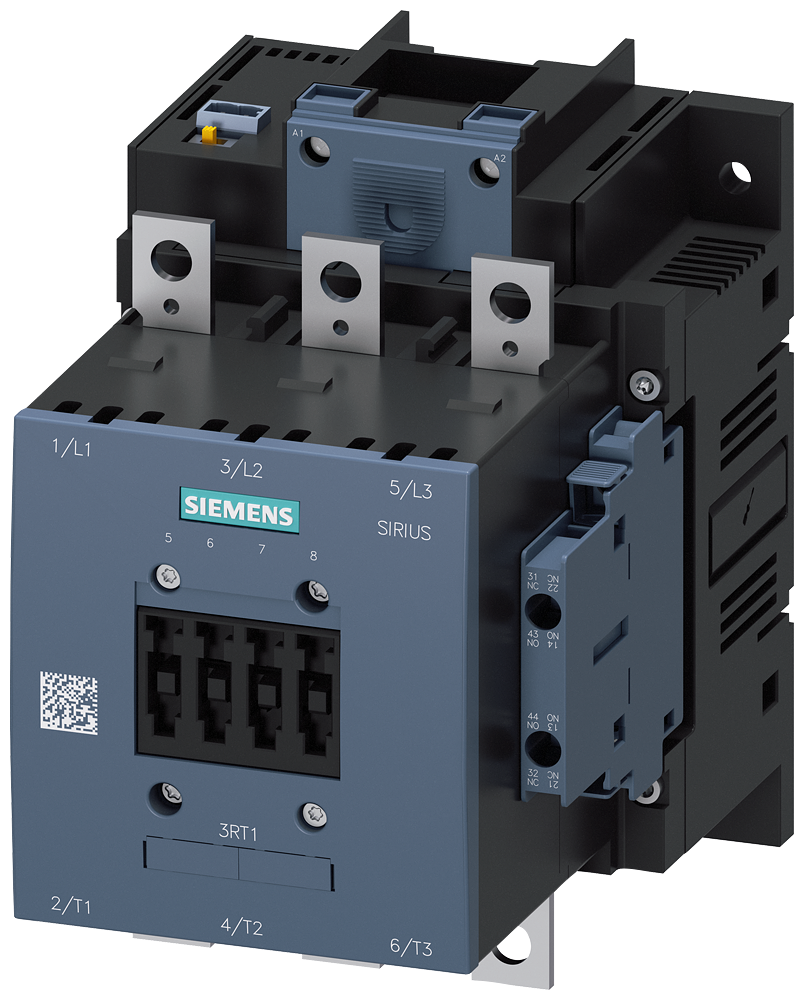

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10546NF363PA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10546NF363PA0

Specifications

Item Number	3RT10546NF363PA0
Brand	Siemens Electrical
Connection type	Connecting rail
Height	7.12600 IN
Length	5.07900 IN
max. rated AC voltage for controls (60 Hz)	127 volt
Max. rated AC voltage for controls; 50 Hz	127 volt
Max. rated DC voltage for controls	127 volt
min. rated control voltage Us with AC 50 Hz	96 volt
min. rated control voltage Us with DC	96 volt
Number of making contacts and main contacts	3
Power loss per pole; current-dependent [PlIp]	7 watt
Power loss; static; current-independent [Pls]	2.8 watt
Rated current [In] for the power loss specification	115 ampere
Rated operating current Ie with AC-3; 400 V	115 ampere
Rated operating power with AC-3; 400 V	55 kilowatt
rated operational power AC-1 at 400 V	92 kilowatt
suitable for mounting onto standard rails	FALSE
suitable for series installation	TRUE
Weight	7.40500 LB
Width	7.48100 IN
