Documents: 3RT10543NF36

Datasheet

3RT10543NF36 | CONTACTOR. 55 KW / 400 V / AC-3 | Siemens Electrical

CONTACTOR. 55KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 96-127V AUXILIARY CONTACTS 2NO+2NC 3-POLE. SIZE S6 WITH BOX TERMINALS ELECTRON. OPERATING MECHANISM WITH 24 V DC PLC INTERFACE CAGE CLAMP CONNECTION

Brand: Siemens ElectricalSKU: 3RT10543NF36

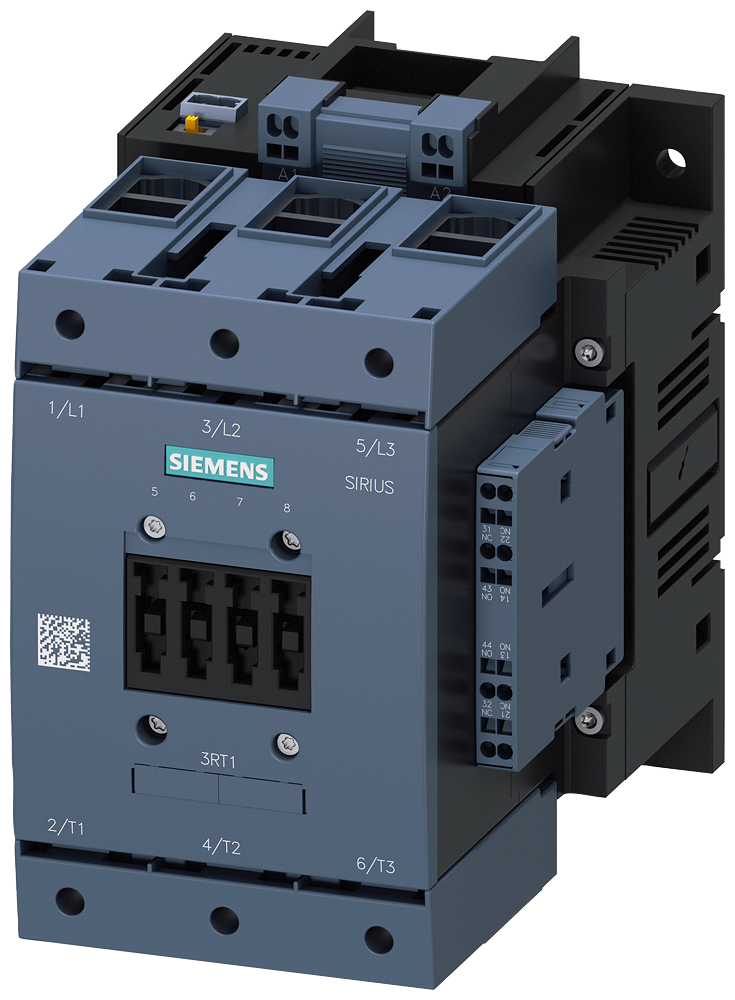

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10543NF36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10543NF36

Specifications

Item Number	3RT10543NF36
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	7.990 LB
