Documents: 3RT10541PP35

Datasheet

3RT10541PP35 | CONTACTOR S6 115A 200-277VUC 3P BOX TERM | Siemens Electrical

CONTACTOR. 55KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 200...277V AUXIL. CONTACTS 1NO+1NC 3-POLE. SIZE S6 WITH BOX TERMINALS ELECTRONIC OPERATING MECHANISM WITH PLC/SIMOCODE INTERFACE AND REMAIN. LIFETIME INDICATOR

Brand: Siemens ElectricalSKU: 3RT10541PP35

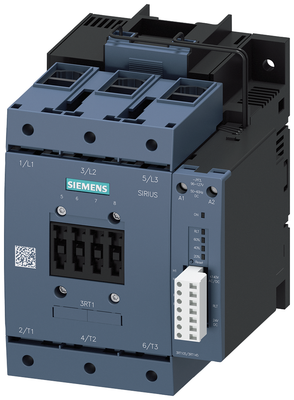

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10541PP35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10541PP35

Specifications

Item Number	3RT10541PP35
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	9.13900 LB
