Documents: 3RT10541AB36

Datasheet

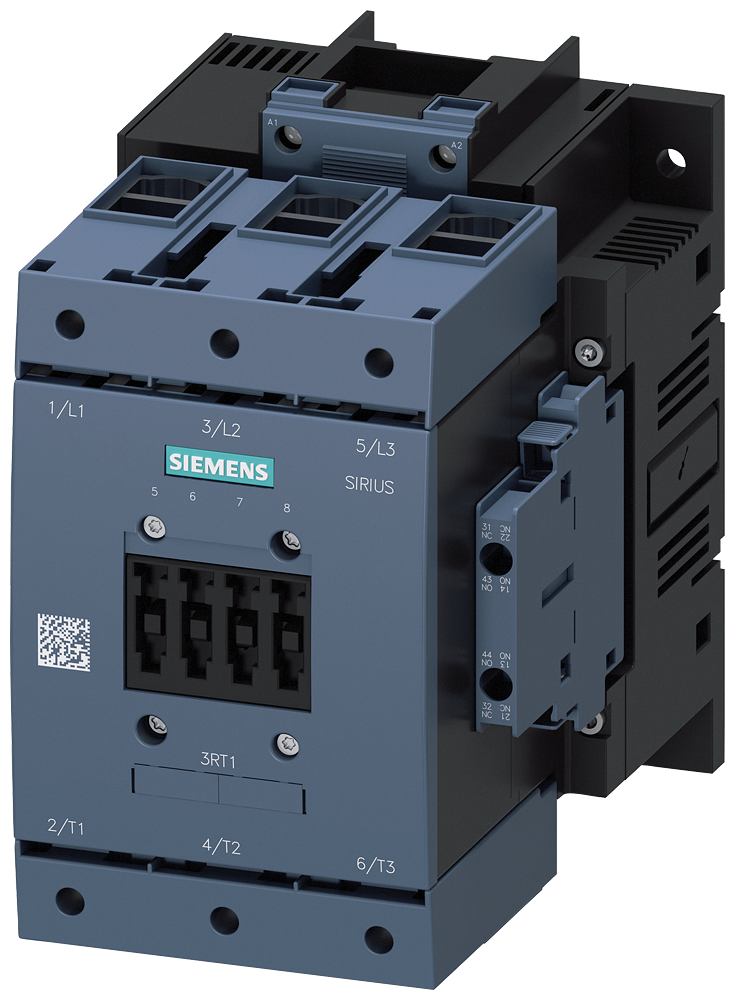

3RT10541AB36 | CONTACTOR S6 115A 23-26VUC 3P BX TERM | Siemens Electrical

Contactor, 55KW/400v/AC-3 AC(40...60HZ)/DC operation uc 23...26v auxil. contacts 2NO+2NC 3-pole, size s6 with box terminals conventional operating mechan. screw terminal

Brand: Siemens ElectricalSKU: 3RT10541AB36

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10541AB36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10541AB36

Specifications

Item Number	3RT10541AB36
Brand	Siemens Electrical
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	8.010 LB
Width	7.490 IN
