Documents: 3RT1054-6LA06

Datasheet

3RT1054-6LA06 | CONTACTOR S6 115A NO COIL 3P BAR | Siemens Electrical

Contactor, 55KW/400v/AC-3 w/o coil auxil. contacts 2NO+2NC 3-pole, size s6 bar connections conventional operating mechan. aux.conductor screw terminals

Brand: Siemens ElectricalSKU: 3RT1054-6LA06

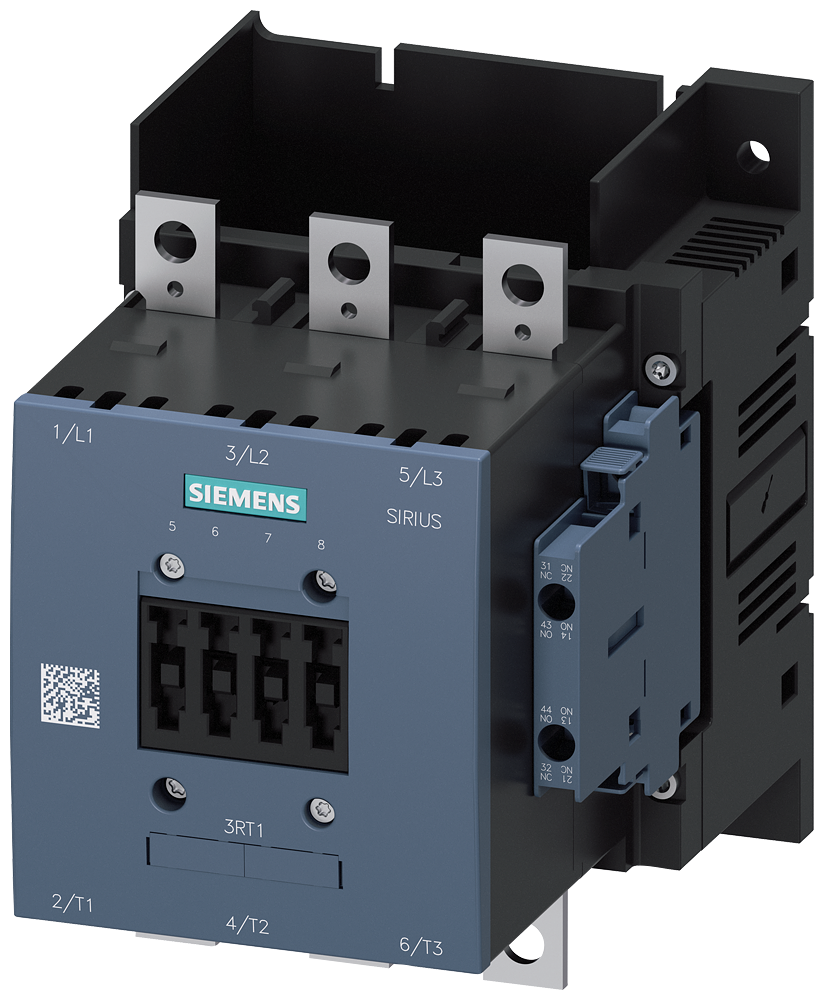

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1054-6LA06

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1054-6LA06

Specifications

Item Number	3RT1054-6LA06
Brand	Siemens Electrical
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Rail connection
Weight	6.15100 LB
Width	7.490 IN
