Documents: 3RT1054-6AP36

Datasheet

3RT1054-6AP36 | CONTACTOR S6 115A 220-240VUC 3P BAR | Siemens Electrical

Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 220 - 240 AC/DC Coil Frame Size S6,115A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5

Brand: Siemens ElectricalSKU: 3RT1054-6AP36

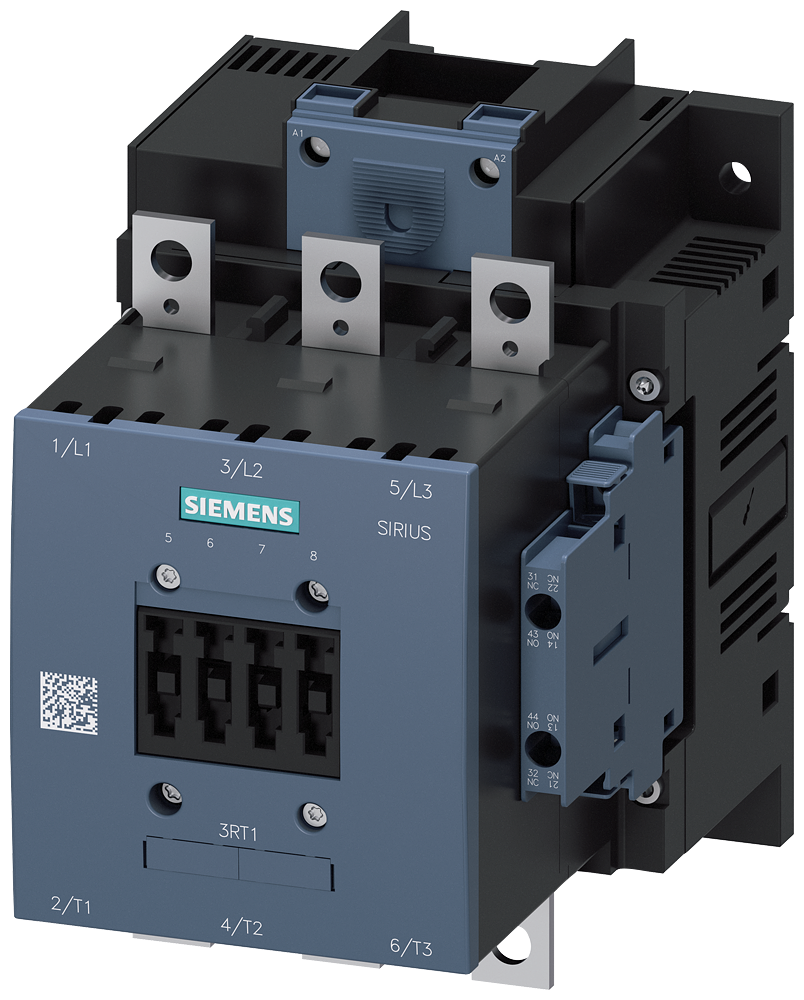

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1054-6AP36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1054-6AP36

Specifications

Item Number	3RT1054-6AP36
Brand	Siemens Electrical
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	220 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.3 LB
Width	7.490 IN
