Documents: 3RT1054-1PF35

Datasheet

3RT1054-1PF35 | CONTACTOR S6 115A 96-127VUC 3P BX TERM | Siemens Electrical

AND RESID. LIFETIME INDICATION WITH SPS/SIMOCODE INTERFACE DRIVE: ELECTRONIC WITH BOX TERMINALS 3-POLE, SIZE S6 AUXILIARY CONTACTS 1NO+1NC AC/DC OPERATION 96-127V UC CONTACTOR, 55KW/400V/AC-3

Brand: Siemens ElectricalSKU: 3RT1054-1PF35

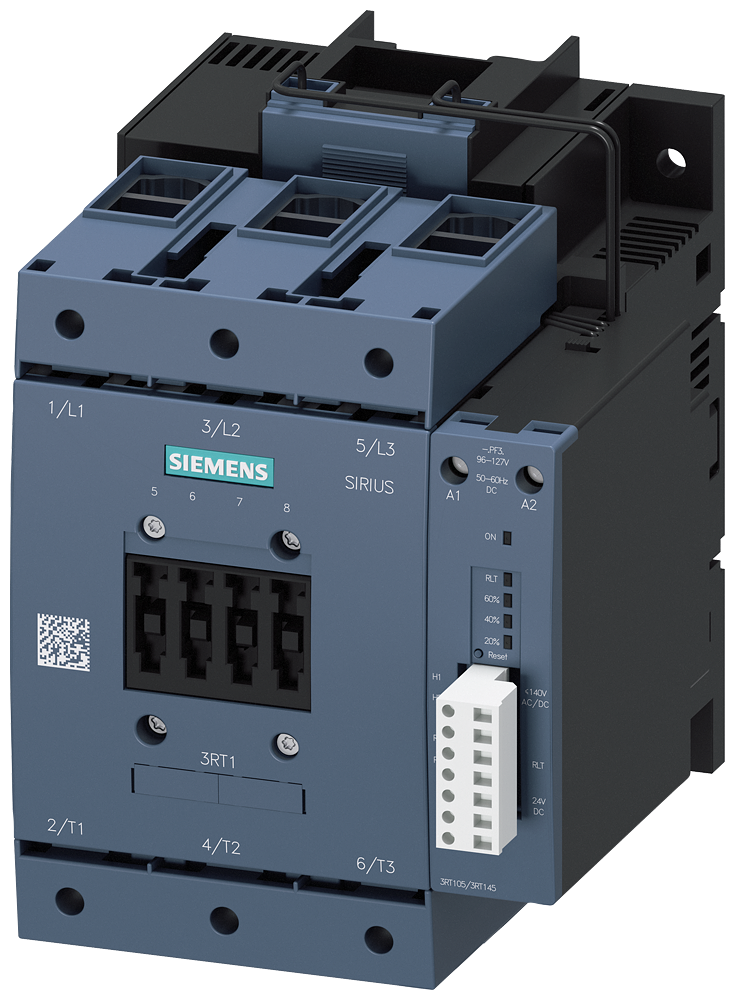

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1054-1PF35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1054-1PF35

Specifications

Item Number	3RT1054-1PF35
Brand	Siemens Electrical
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	9.240 LB
Width	10.440 IN
