Documents: 3RT1054-1AR36

Datasheet

3RT1054-1AR36 | CONTACTOR S6 115A 440-480VUC 3P BX TERM | Siemens Electrical

Contactor, 55KW/400v/AC-3, AC(40...60HZ)/DC operation uc 440...480v aux. contacts 2NO+2NC, 3-pole, size s6 with box terminals conventional operating mechan. screw terminal

Brand: Siemens ElectricalSKU: 3RT1054-1AR36

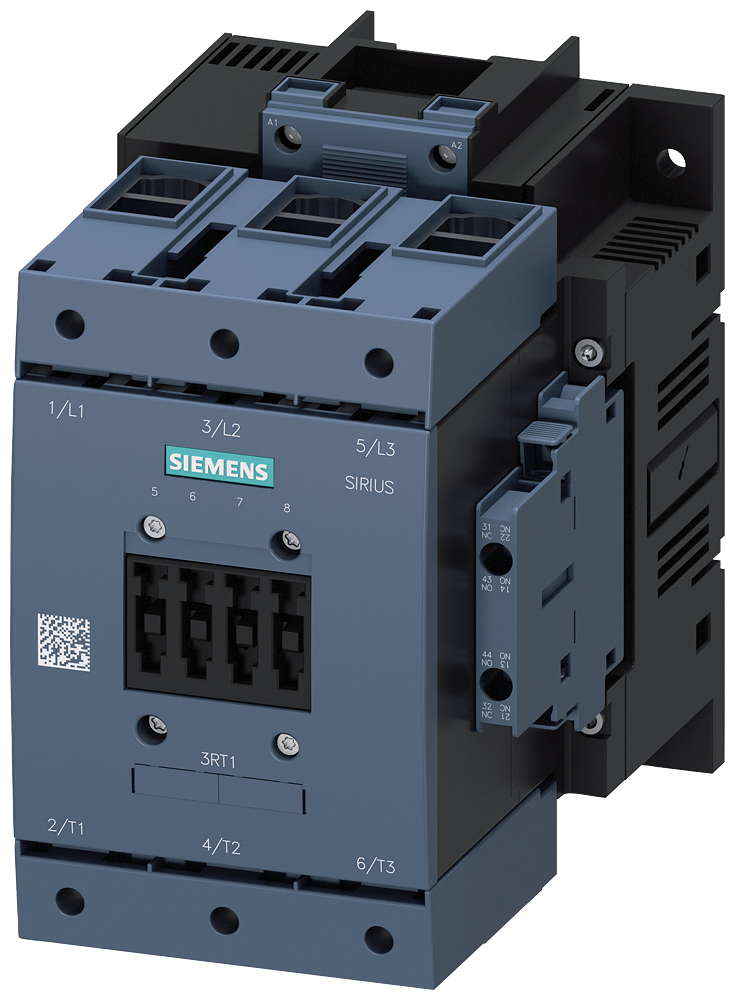

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1054-1AR36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1054-1AR36

Specifications

Item Number	3RT1054-1AR36
Brand	Siemens Electrical
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	440 V
Rated control supply voltage Us at AC 60HZ	440 V
Rated control supply voltage Us at DC	440 V
Rated operation current Ie at AC-1; 400 V	160 A
Rated operation current Ie at AC-3; 400 V	115 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	73.549875 kW
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC/DC
Weight	8.010 LB
Width	7.490 IN
