Documents: 3RH29112XA220MA0

Datasheet

3RH29112XA220MA0 | AUX. SWITCH 2NO+2NC FOR S00 & S0 SPRNG | Siemens Electrical

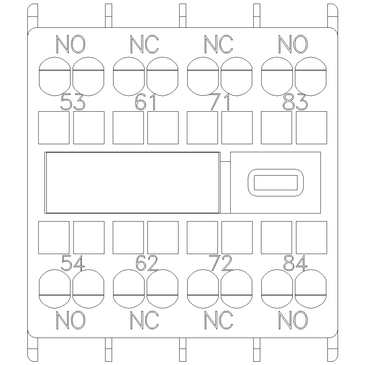

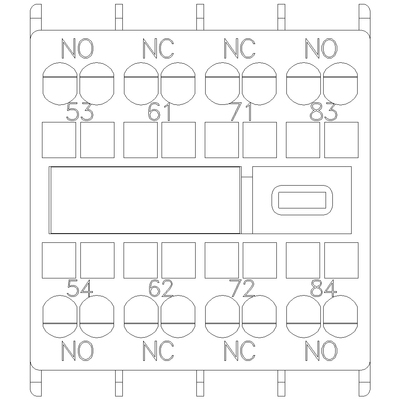

Aux.switch block,front,2NO+2NC, curr.path 1NO, 1NC, 1NC, 1NO, f. cont. relays a. motor cont., sz s00 and s0, spring-loaded terminal 53 / 54,61 / 62,71 / 72,83 / 84 din en 50011

Brand: Siemens ElectricalSKU: 3RH29112XA220MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RH29112XA220MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RH29112XA220MA0

Specifications

Item Number	3RH29112XA220MA0
Brand	Siemens Electrical
Height	1.800 IN
Lamp holder	None
Length	2.800 IN
Model	Top mounting
Mounting method	Other
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Number of fault-signal switches	0
Rated operation current Ie at AC-15; 230 V	0.25
Type of electric connection	Spring clamp connection
Weight	0.110 LB
Width	3 IN
