Documents: 3RH29112HA21

Datasheet

3RH29112HA21 | AUX. SWITCH 2NO+1NC FOR S00 & S0 SPRNG | Siemens Electrical

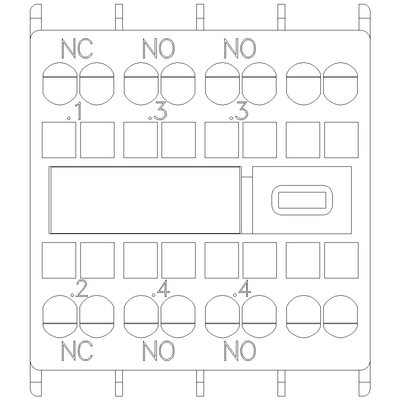

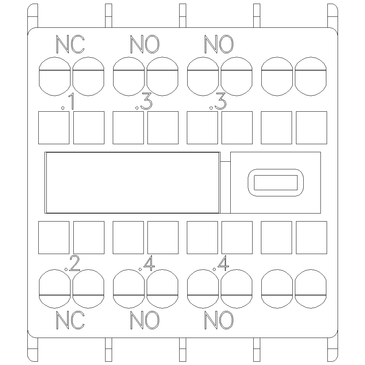

Aux.switch block,front,2NO+1NC, curr.path 1NC, 1NO, 1NO, f. cont. relays a. motor cont., sz s00 and s0, spring-loaded terminal .1 / .2, .3 / .4, .3 / .4

Brand: Siemens ElectricalSKU: 3RH29112HA21

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RH29112HA21

Jump to: Overview & Specifications Reviews

Overview Details for 3RH29112HA21

Specifications

Item Number	3RH29112HA21
Brand	Siemens Electrical
Height	1.860 IN
Lamp holder	None
Length	2.370 IN
Model	Top mounting
Mounting method	Other
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	2
Number of fault-signal switches	0
Rated operation current Ie at AC-15; 230 V	0.25
Type of electric connection	Spring clamp connection
Weight	0.110 LB
Width	2.130 IN
