Documents: 3RH29111NF02

Datasheet

3RH29111NF02 | AUX. SWITCH 2NC FOR S00 & S0 SCREW | Siemens Electrical

Solid-state comp. aux. sw bl.fr 2NC, curr.path 1NC,--,--,1NC, f. cont. relays a. motor cont., sz s00 and s0, screw terminal .1 / .2,-- / --,-- / --,.1 / .2

Brand: Siemens ElectricalSKU: 3RH29111NF02

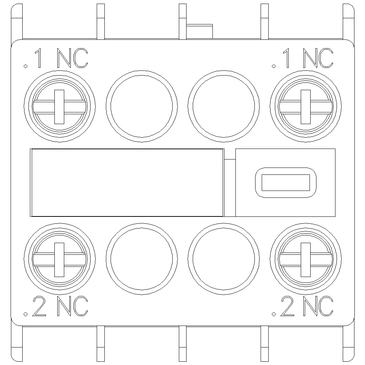

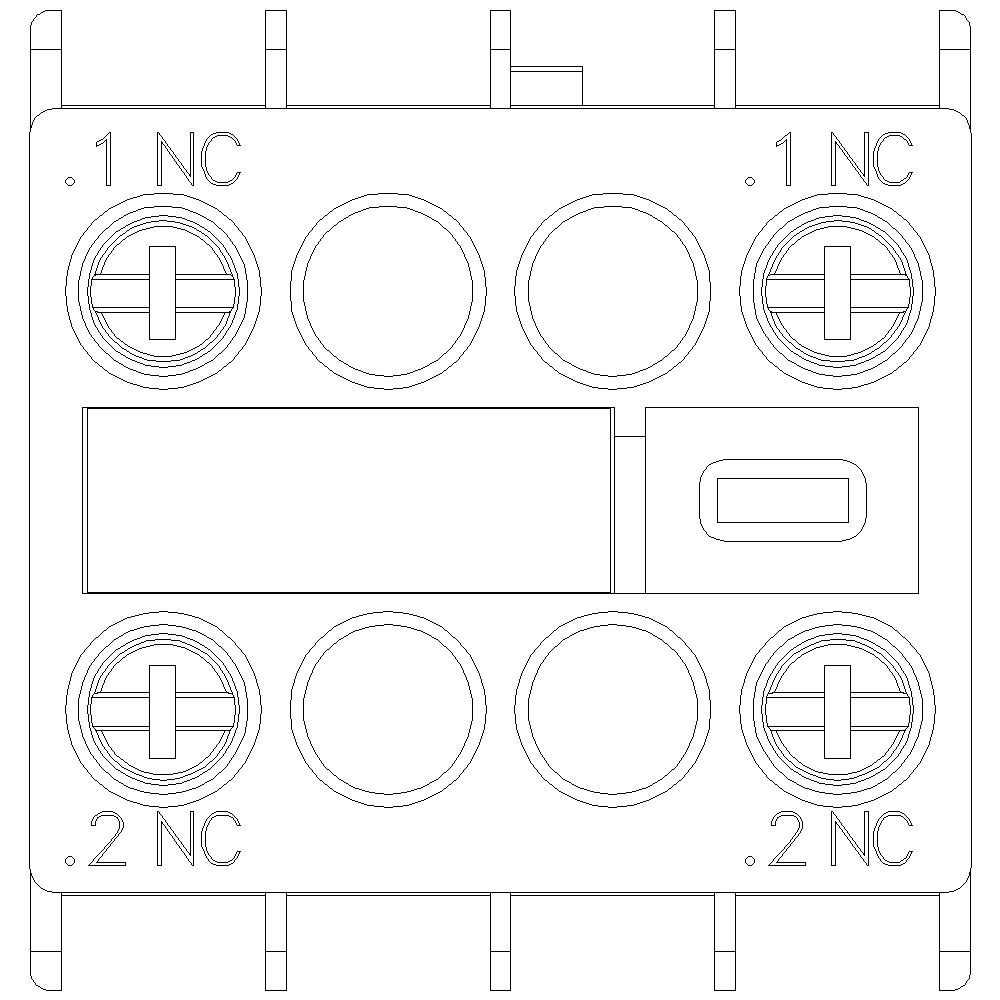

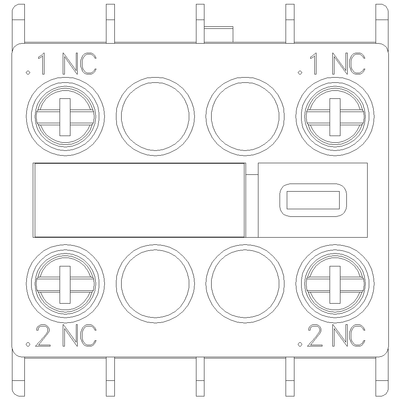

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RH29111NF02

Jump to: Overview & Specifications Reviews

Overview Details for 3RH29111NF02

Specifications

Item Number	3RH29111NF02
Brand	Siemens Electrical
Height	2.150 IN
Lamp holder	None
Length	2.450 IN
Model	Top mounting
Mounting method	Other
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	0
Number of fault-signal switches	0
Type of electric connection	Screw connection
Weight	0.66500 LB
Width	1.600 IN
