Documents: 3RH29111HA31

Datasheet

3RH29111HA31 | AUX. SWITCH 3NO+1NC FOR S00 SCREW | Siemens Electrical

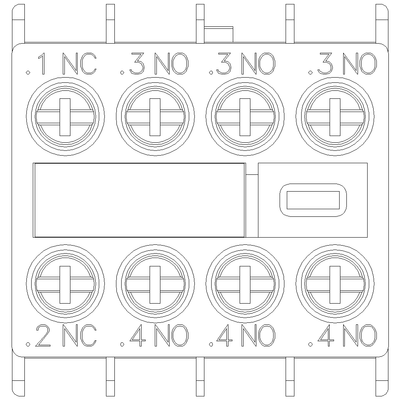

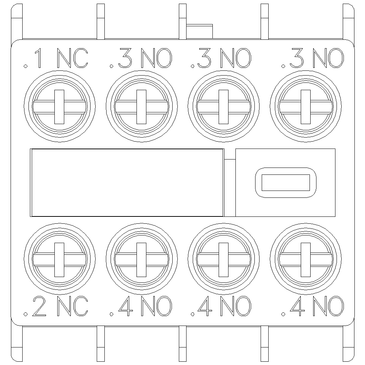

Aux.switch block,front,3NO+1NC, curr.path 1NC, 1NO, 1NO, 1NO, f. cont. relays a. motor cont., sz s00 and s0, screw terminal .1 / .2,.3 / .4,.3 / .4,.3 / .4

Brand: Siemens ElectricalSKU: 3RH29111HA31

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RH29111HA31

Jump to: Overview & Specifications Reviews

Overview Details for 3RH29111HA31

Specifications

Item Number	3RH29111HA31
Brand	Siemens Electrical
Height	1.890 IN
Lamp holder	None
Length	2.370 IN
Model	Top mounting
Mounting method	Other
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	3
Number of fault-signal switches	0
Rated operation current Ie at AC-15; 230 V	0.25
Type of electric connection	Screw connection
Weight	0.050 LB
Width	1.970 IN
