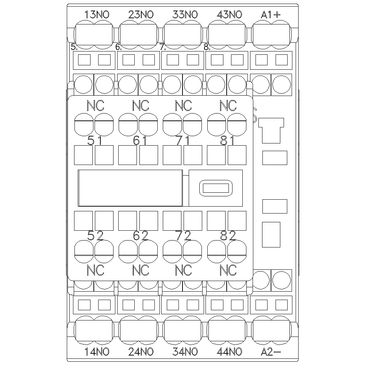

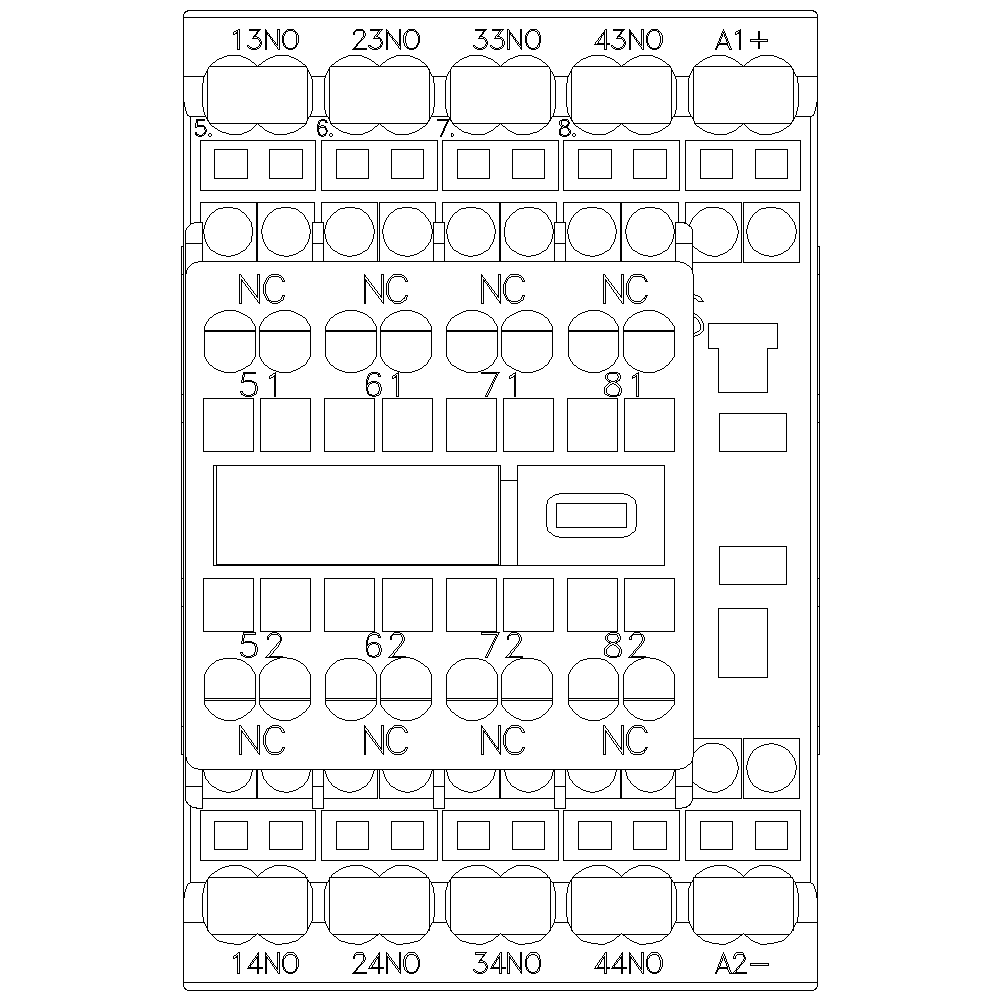

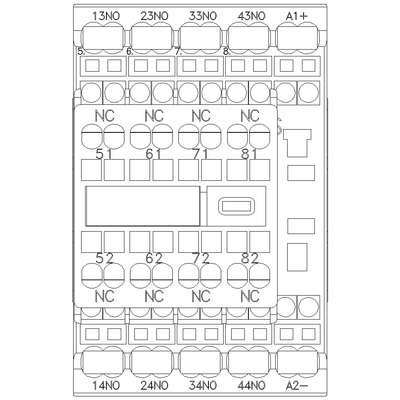

3RH23442BB40 | CONTACTOR RELAY 4NO+4NC DC 24V SPRING | Siemens Electrical

Contactor relay, 4NO+4nc, DC 24V, sz s00, spring-loaded terminal, removable aux. switch

Brand: Siemens ElectricalSKU: 3RH23442BB40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RH23442BB40

Item Number	3RH23442BB40
Brand	Siemens Electrical
Coil Power Rating	4 W / 4 W
Coil Voltage	DC
Connection	spring-loaded terminals
Contact Configuration	4
Contact Rating	A600 / Q600
Height	4.890 IN
Length	2.920 IN
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail
Operating Cycles	10
Operating Temperature	-25 °C ... 60 °C
Power Factor	-99999
Size	0.045 m / 0.07 m / 0.121 m
Special Features	TRUE
Sub Brand	SIRIUS
Type	Auxiliary contactor
Weight	0.770 LB
Width	1.970 IN
