Documents: 3RH21402AF00
3RH21402AF00 | CONTACTOR RELAY 4NO AC 110V SPRING | Siemens Electrical
Contactor relay, 4NO, AC 110V, 50/60 HZ, sz s00, spring-loaded terminal

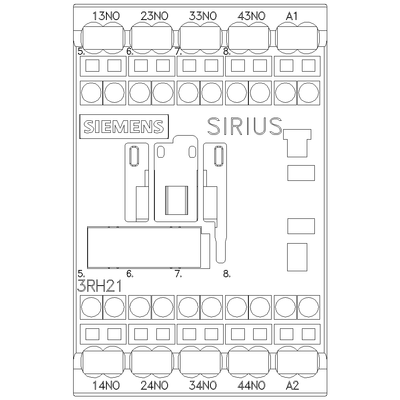

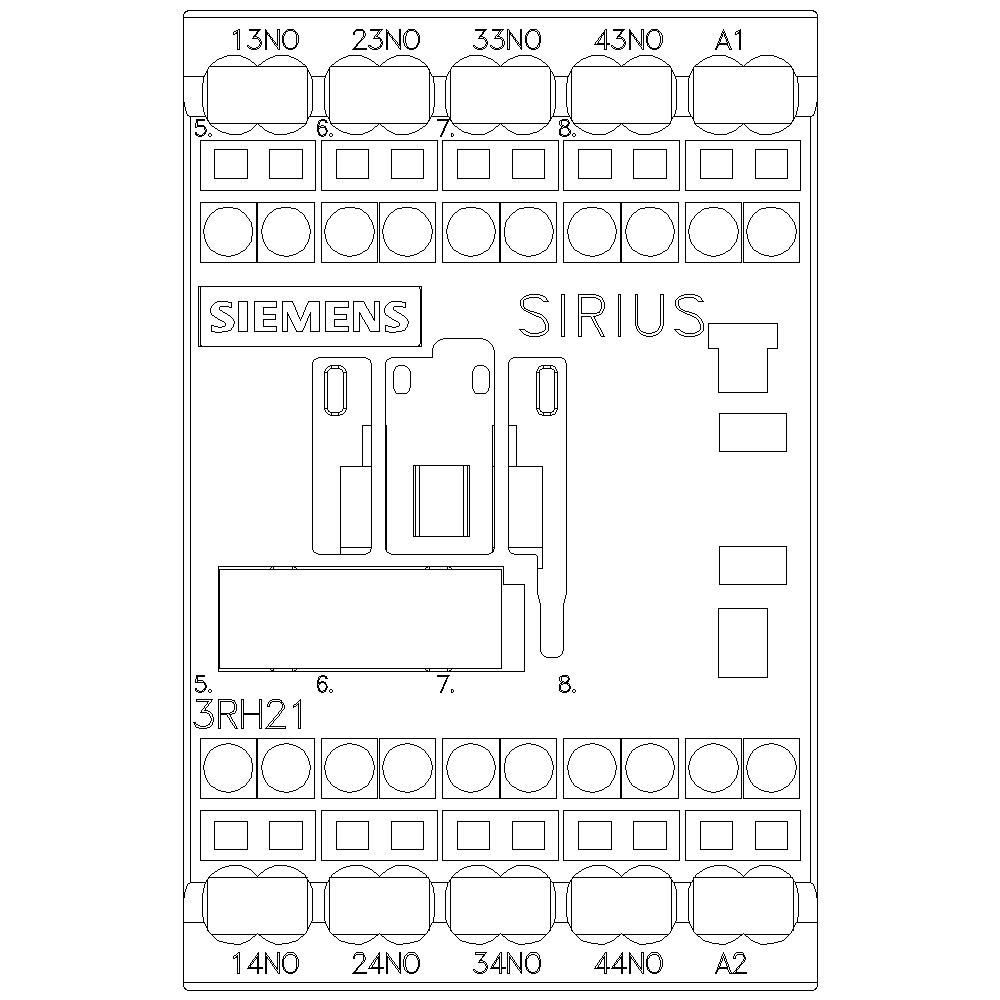

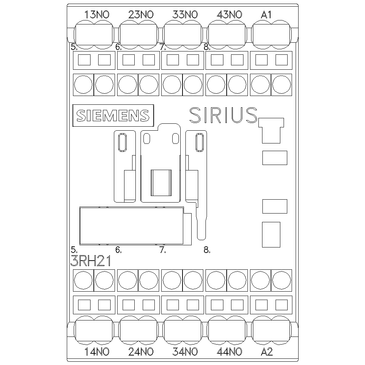

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RH21402AF00
Overview Details for 3RH21402AF00
Specifications
Item Number | 3RH21402AF00 |
Brand | Siemens Electrical |
Coil Power Rating | -99999 W / -99999 W |
Coil Voltage | AC |
Connection | spring-loaded terminals |
Contact Configuration | -99999 |
Contact Rating | A600 / Q600 |
Height | 3.080 IN |
Length | 2.920 IN |
Mounting | screw and snap-on mounting onto 35 mm standard mounting rail |
Operating Cycles | 30 |
Operating Temperature | -25 °C ... 60 °C |
Power Factor | 0.8 |
Size | 0.045 m / 0.07 m / 0.073 m |
Special Features | TRUE |
Sub Brand | SIRIUS |
Type | Auxiliary contactor |
Weight | 0.52800 LB |
Width | 1.970 IN |
