Documents: 3RH21311AK20
3RH21311AK20 | CONTACTOR RELAY 3NO+1NC AC 120V SCREW | Siemens Electrical
CONTACTOR RELAY, 3NO+1NC, AC 120V, 50/60 HZ, SIZE S00, SCREW TERMINAL

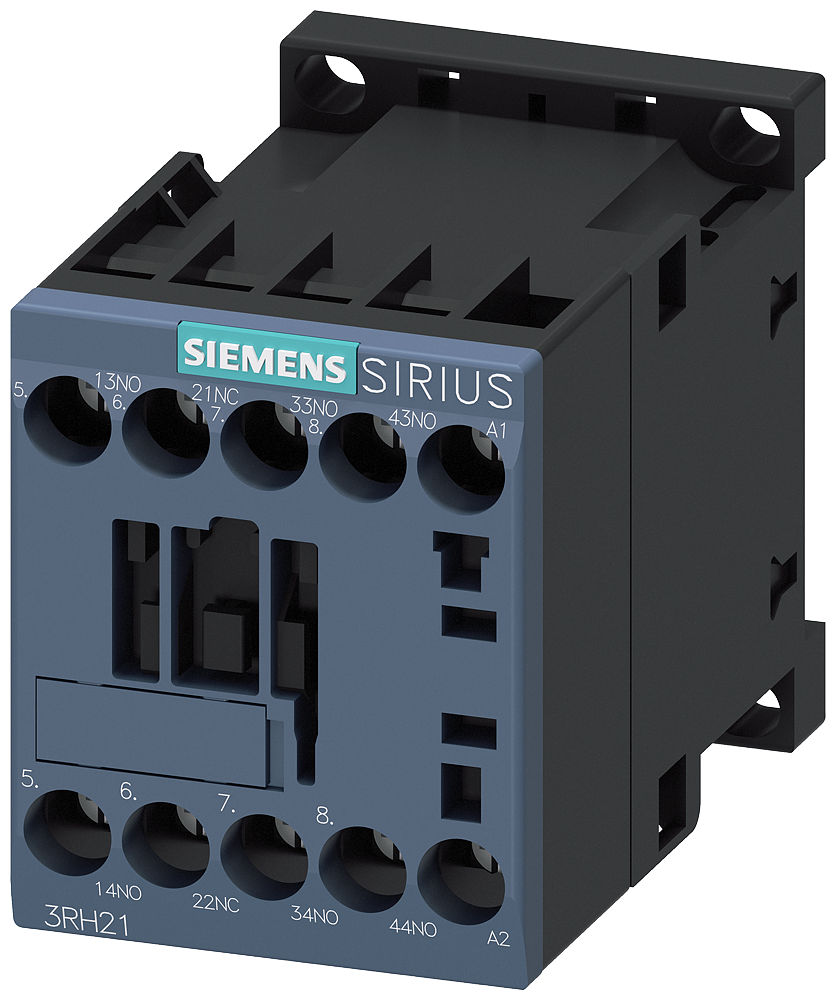

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RH21311AK20
Overview Details for 3RH21311AK20
Specifications
Item Number | 3RH21311AK20 |
Brand | Siemens Electrical |
Coil Power Rating | -99999 W / -99999 W |
Coil Voltage | AC |
Connection | screw-type terminals |
Contact Configuration | 1 |
Contact Rating | A600 / Q600 |
Height | 2.48100 IN |
Length | 3.30800 IN |
Mounting | screw and snap-on mounting onto 35 mm standard mounting rail |
Operating Cycles | 30 |
Operating Temperature | -25 °C ... 60 °C |
Power Factor | 0.8 |
Size | 0.045 m / 0.0575 m / 0.073 m |
Special Features | TRUE |
Sub Brand | SIRIUS |
Type | Auxiliary contactor |
Weight | 0.51400 LB |
Width | 1.96900 IN |
