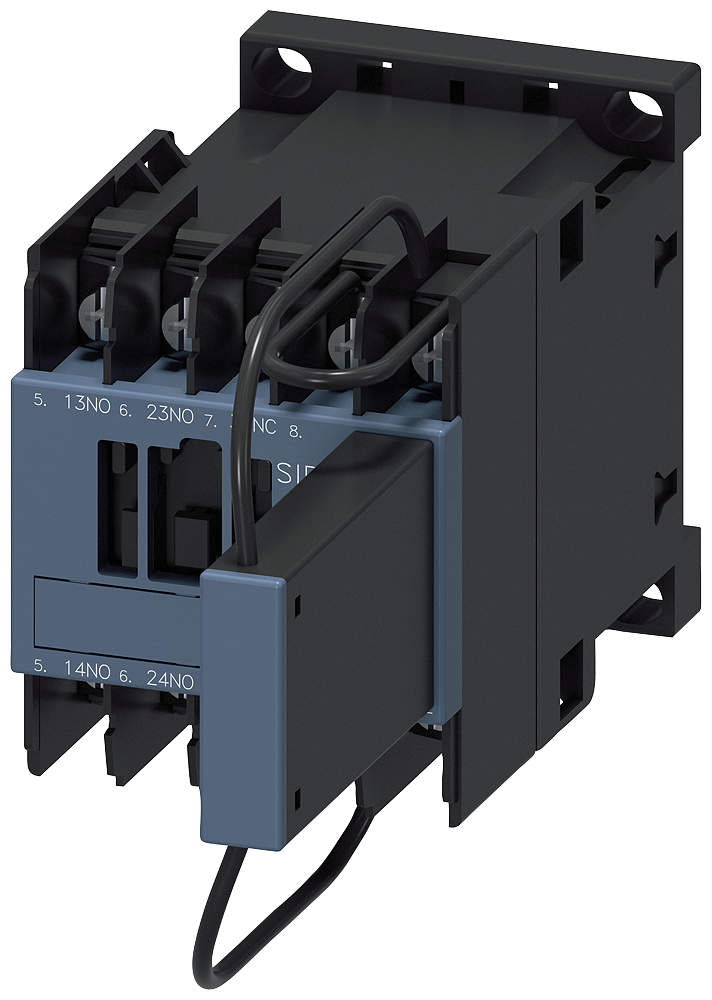

3RH21224LB400LA0 | CONT RELAY FOR RAILWAY | 2NO+1NC | DC | Siemens Electrical

CONT RELAY FOR RAILWAY 2NO+1NC, DC

Brand: Siemens ElectricalSKU: 3RH21224LB400LA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RH21224LB400LA0

Item Number	3RH21224LB400LA0
Brand	Siemens Electrical
Coil Power Rating	4 W / 13 W
Coil Voltage	DC
Connection	ring terminal lug connection
Contact Configuration	1
Contact Rating	A600 / Q600
Height	4.730 IN
Length	2.450 IN
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail
Operating Cycles	30
Operating Temperature	-40 °C ... 70 °C
Power Factor	-99999
Size	0.045 m / 0.0575 m / 0.117 m
Special Features	TRUE
Sub Brand	SIRIUS
Type	Auxiliary contactor
Weight	0.660 LB
Width	1.970 IN
