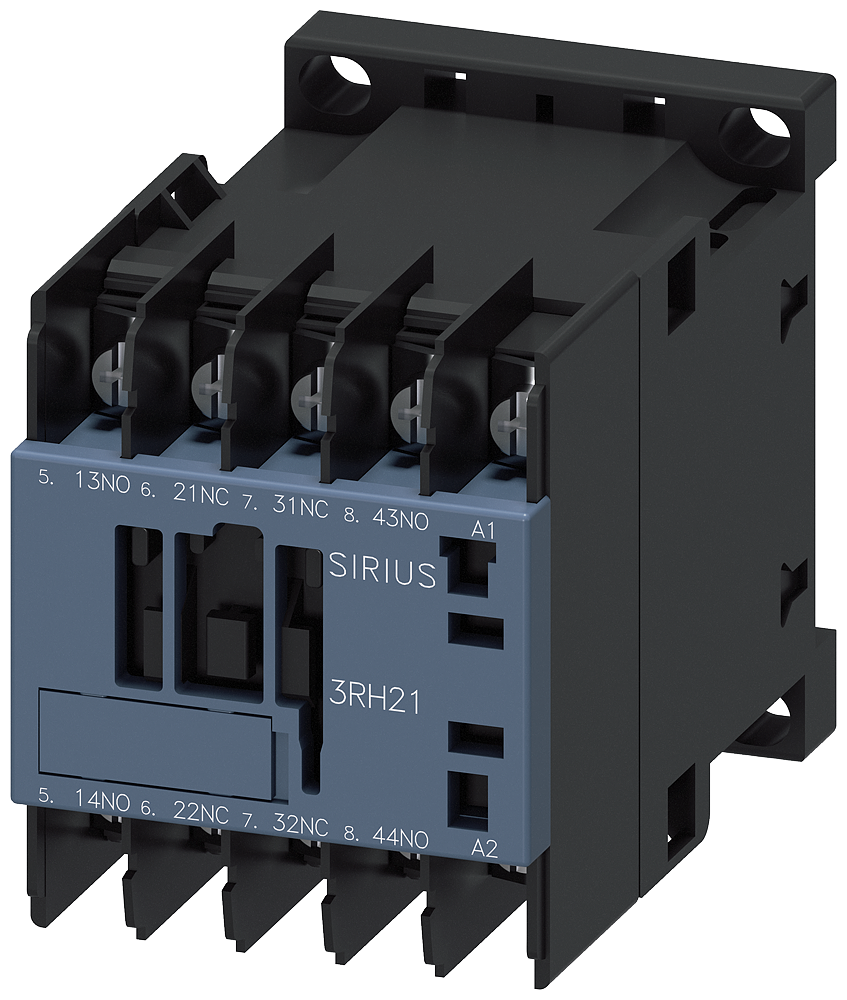

3RH21224AG60 | CONTACTOR RELAY 2NO+2NC AC 100V RING LUG | Siemens Electrical

CONTACTOR RELAY, 2NO+2NC, AC 100V 50HZ, 100..110V 60HZ, SZ S00,RINGCABLE LUG CONNECTION RING CABLE LUG CONNECTION

Brand: Siemens ElectricalSKU: 3RH21224AG60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RH21224AG60

Item Number	3RH21224AG60
Brand	Siemens Electrical
Coil Power Rating	-99999 W / -99999 W
Coil Voltage	AC
Connection	ring terminal lug connection
Contact Configuration	2
Contact Rating	A600 / Q600
Height	3.080 IN
Length	2.450 IN
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail
Operating Cycles	30
Operating Temperature	-25 °C ... 60 °C
Power Factor	0.8
Size	0.045 m / 0.0575 m / 0.073 m
Special Features	TRUE
Sub Brand	SIRIUS
Type	Auxiliary contactor
Weight	0.46200 LB
Width	1.970 IN
