Documents: 3RH21222HB40
3RH21222HB40 | COUPLING RELAY 2NO+2NC DC 24V SPRING | Siemens Electrical

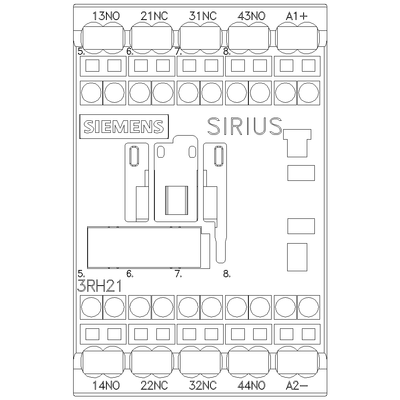

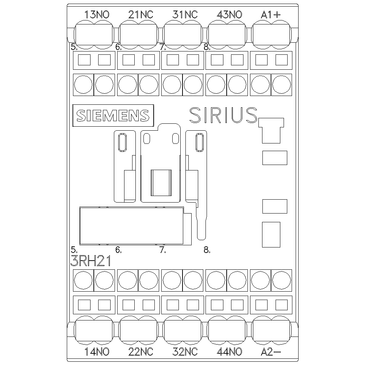

Coupling contactor relay, 2NO+2NC, DC 24V, 0.7...1.25*us, sz s00, spring-loaded terminal
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RH21222HB40
Overview Details for 3RH21222HB40
Specifications
Item Number | 3RH21222HB40 |
Brand | Siemens Electrical |
Coil Power Rating | 2.8 W / 2.8 W |
Coil Voltage | DC |
Connection | spring-loaded terminals |
Contact Configuration | 2 |
Contact Rating | A600 / Q600 |
Height | 3.080 IN |
Length | 2.920 IN |
Mounting | screw and snap-on mounting onto 35 mm standard mounting rail |
Operating Cycles | 30 |
Operating Temperature | -25 °C ... 60 °C |
Power Factor | -99999 |
Size | 0.045 m / 0.07 m / 0.073 m |
Special Features | TRUE |
Sub Brand | SIRIUS |
Type | Coupling relay for switching auxiliary circuits |
Weight | 0.660 LB |
Width | 1.970 IN |
