3RH21221BB401AA0 | CONTACTOR RELAY 2NO+2NC DC 24V VERTICAL | Siemens Electrical
Contactor relay, 2NO+2NC, DC 24V, size s00, screw terminal upright mounting position

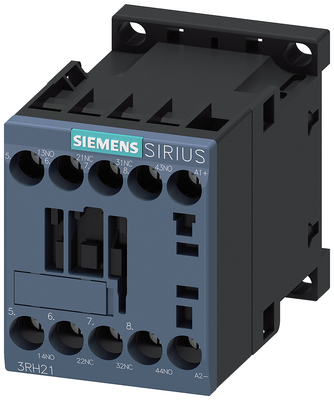

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RH21221BB401AA0
Overview Details for 3RH21221BB401AA0
Specifications
Item Number | 3RH21221BB401AA0 |
Brand | Siemens Electrical |
Coil Power Rating | 4 W / 4 W |
Coil Voltage | DC |
Connection | screw-type terminals |
Contact Configuration | 2 |
Contact Rating | A600 / Q600 |
Height | 1.96900 IN |
Length | 3.03200 IN |
Mounting | screw and snap-on mounting onto 35 mm standard mounting rail |
Operating Cycles | 30 |
Operating Temperature | -25 °C ... 60 °C |
Power Factor | -99999 |
Size | 0.045 m / 0.0575 m / 0.073 m |
Special Features | TRUE |
Sub Brand | SIRIUS |
Type | Auxiliary contactor |
Weight | 0.63900 LB |
Width | 2.48100 IN |
