22LPU32AF | STARTER-FVR | SZ5 | 55-250A3PH | OPN | 120V | | Siemens Electrical

Reversing motor starter, Size 5, Three phase full voltage, Solid-state overload relay, OLR amp range 55-250A, 110-127V 50-60Hz/DC coil, Non-combination type, Enclosure type (open), No enclosure

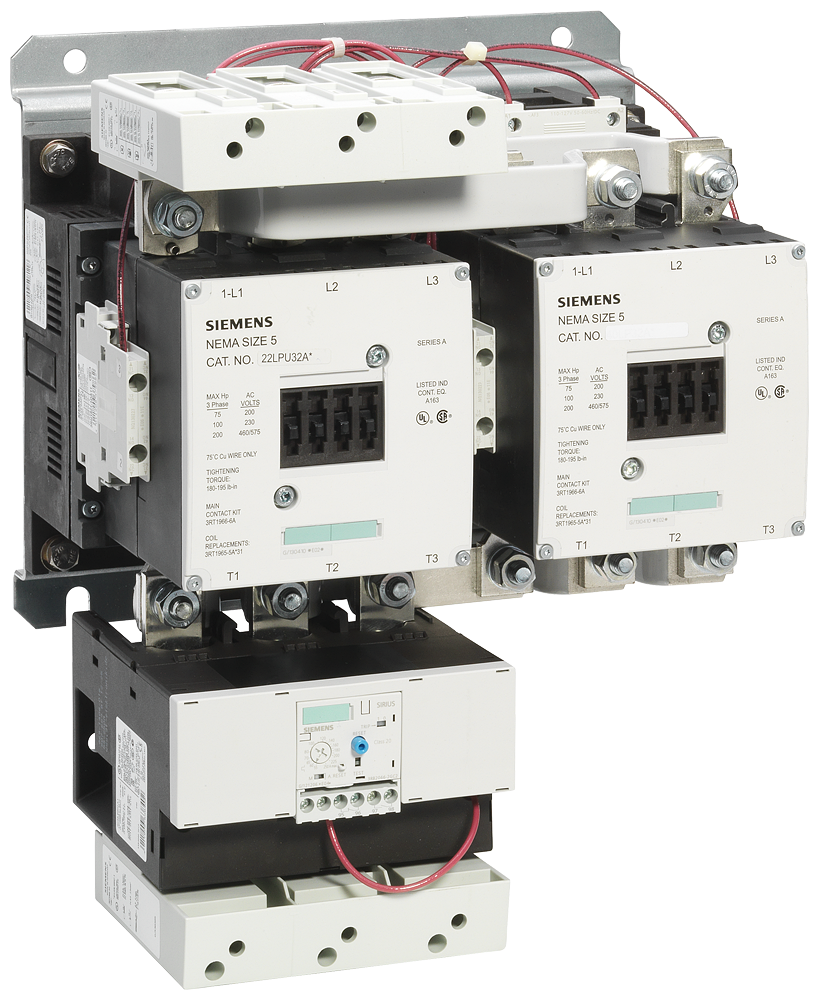

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 22LPU32AF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Electrical 22LPU32AF Documents

Datasheet

Overview

Details for 22LPU32AF

Specifications

Item Number	22LPU32AF
Brand	Siemens Electrical
External reset possible	FALSE
freeship	upsground
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Overload release current setting	55 A
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	110 V
Rated control supply voltage Us at DC	110 V
Rated power; 460 V; 60 Hz; 3-phase	147.09975 kW
Release class	CLASS 20
Voltage type for actuating	AC/DC
Weight	41 LB
With short-circuit release	FALSE
