Documents: 18DUE92BJ

Datasheet

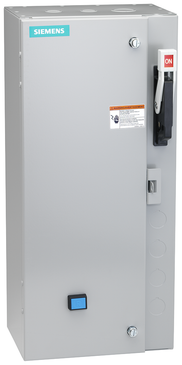

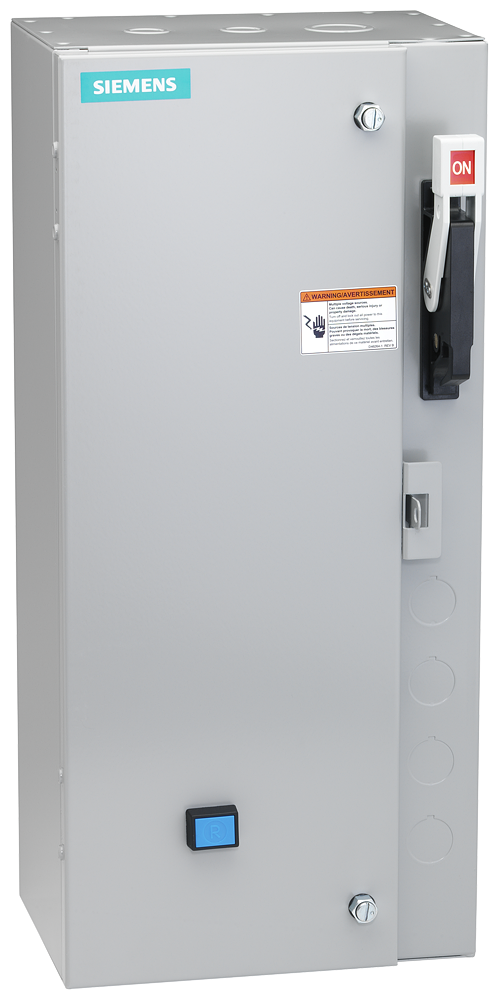

18DUE92BJ | Starter | Combo SZ1 | 10-40Amps | N1 | 24V | Siemens Electrical

Non-reversing motor starter, Size 1, H2 Solid-state overload relay, OLR amp range 10-40A, 24VAC 50-60Hz coil, Combination type, 30A circuit breaker, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure

Brand: Siemens ElectricalSKU: 18DUE92BJ

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 18DUE92BJ

Jump to: Overview & Specifications Reviews

Overview Details for 18DUE92BJ

Specifications

Item Number	18DUE92BJ
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
Degree of protection (NEMA)	1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	0.416666666666667
Release class	Other
Voltage type for actuating	AC
Weight	34 LB
With short-circuit release	TRUE
With transformer	FALSE
