Documents: 18CUD92BG

Datasheet

18CUD92BG | Starter | Combo SZ0 | 5.5-22Amps | N1 | 240V | Siemens Electrical

Non-reversing motor starter Size 0 Three phase full voltage Solid-state overload relay OLRelay amp range 5.5-22A 190-220/220-240V 50/60HZ coil Combination type 25Amp circuit breaker Enclosure NEMA type 1 Indoor general purpose use Standard width enclosure

Brand: Siemens ElectricalSKU: 18CUD92BG

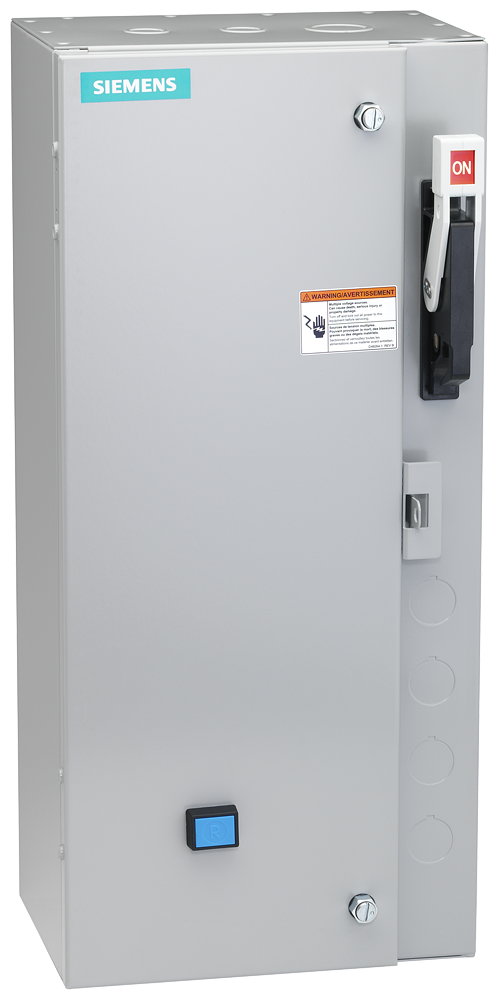

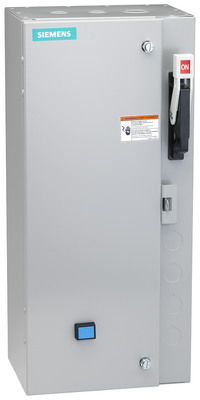

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 18CUD92BG

Jump to: Overview & Specifications Reviews

Overview Details for 18CUD92BG

Specifications

Item Number	18CUD92BG
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
Degree of protection (NEMA)	1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	5.5 A
Rated control supply voltage Us at AC 50HZ	190 V
Rated control supply voltage Us at AC 60HZ	220 V
Voltage type for actuating	AC
Weight	34 LB
With short-circuit release	TRUE
With transformer	FALSE
