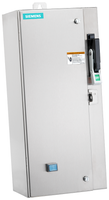

17FUF92WH13 | Starter | Combo SZ2 | 13-52Amps | N4SS | 480V | Siemens Electrical

Non-reversing motor starter, Size 2, H2 Solid-state overload relay, OLR amp range 13-52A, 380#440/440#480V 50/60Hz coil, Combination type, 60A fusible disconnect, 60A/600V fuse clip, Encl NEMA type 4X 304 S-Steel, Water/dust tight noncorrosive, Standard width enclosure

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 17FUF92WH13

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Electrical 17FUF92WH13 Documents

Datasheet

Overview

Details for 17FUF92WH13

Specifications

Item Number	17FUF92WH13
Brand	Siemens Electrical
Degree of protection (NEMA)	4X
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Overload release current setting	13 A
Rated control supply voltage Us at AC 50HZ	380 V
Rated control supply voltage Us at AC 60HZ	440 V
Rated power; 460 V; 60 Hz; 3-phase	18.38746875 kW
Voltage type for actuating	AC
Weight	36 LB
With short-circuit release	TRUE
