17FUF92WH | Starter | Combo SZ2 | 13-52Amps | N4SS | 480V | Siemens Electrical

Non-reversing motor starter, Size 2, H2 Solid-state overload relay, OLR amp range 13-52A, 380#440/440#480V 50/60Hz coil, Combination type, 60A non-fusible disconnect, Encl NEMA type 4X 304 S-Steel, Water/dust tight noncorrosive, Standard width enclosure

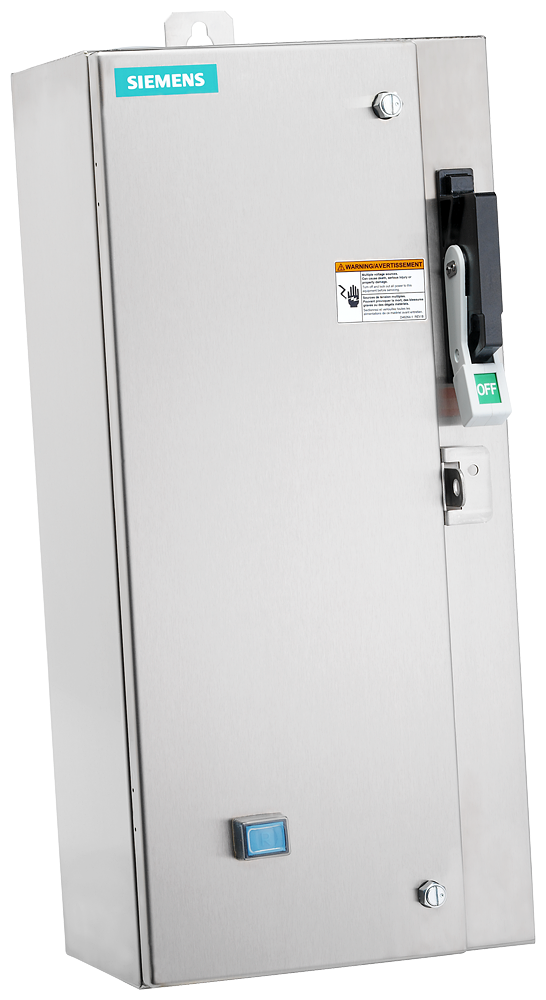

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 17FUF92WH

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Electrical 17FUF92WH Documents

Datasheet

Overview

Details for 17FUF92WH

Specifications

Item Number	17FUF92WH
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
Degree of protection (NEMA)	4
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	13 A
Rated control supply voltage Us at AC 50HZ	380 V
Rated control supply voltage Us at AC 60HZ	440 V
Release class	Other
Voltage type for actuating	AC
Weight	36 LB
With short-circuit release	FALSE
With transformer	FALSE
