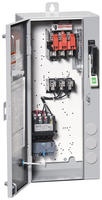

17DUE92NA12 | Starter | Combo SZ1 | 10-40Amps | N12/3R | 120/2 | Siemens Electrical

Non-reversing motor starter, Size 1, H2 Solid-state overload relay, OLR amp range 10-40A, 110#120/220#240VAC 60Hz coil, Combination type, 60A fusible disconnect, 60A/250V fuse clip, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure

Brand: Siemens ElectricalSKU: 17DUE92NA12

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 17DUE92NA12

Jump to: Overview & Specifications Reviews

Overview Details for 17DUE92NA12

Specifications

Item Number	17DUE92NA12
Brand	Siemens Electrical
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Overload release current setting	0.416666666666667
Rated control supply voltage Us at AC 60HZ	110 V
Rated power; 460 V; 60 Hz; 3-phase	0 kW
Voltage type for actuating	AC
Weight	34 LB
With short-circuit release	TRUE
