Documents: 17DUC92NC

Datasheet

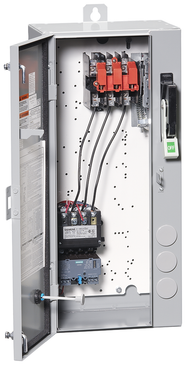

17DUC92NC | Starter | Combo SZ1 | 3-12Amps | N12/3R | 240/48 | Siemens Electrical

Non-reversing motor starter, Size 1, H2 Solid-state overload relay, OLR amp range 3-12A, 220#240/440#480VAC 60Hz coil, Combination type, 30A non-fusible disconnect, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure

Brand: Siemens ElectricalSKU: 17DUC92NC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 17DUC92NC

Jump to: Overview & Specifications Reviews

Overview Details for 17DUC92NC

Specifications

Item Number	17DUC92NC
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
Degree of protection (NEMA)	4
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	0.125
Rated control supply voltage Us at AC 60HZ	220 V
Release class	Other
Voltage type for actuating	AC
Weight	34 LB
With short-circuit release	FALSE
With transformer	FALSE
