Documents: 17DUA92BH

Datasheet

17DUA92BH | Starter | Combo SZ1 | 0.25-1Amps | N1 | 480V | Siemens Electrical

Non-reversing motor starter, Size 1, H2 Solid-state overload relay, OLR amp range 0.25-1A, 380#440/440#480V 50/60Hz coil, Combination type, 30A non-fusible disconnect, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure

Brand: Siemens ElectricalSKU: 17DUA92BH

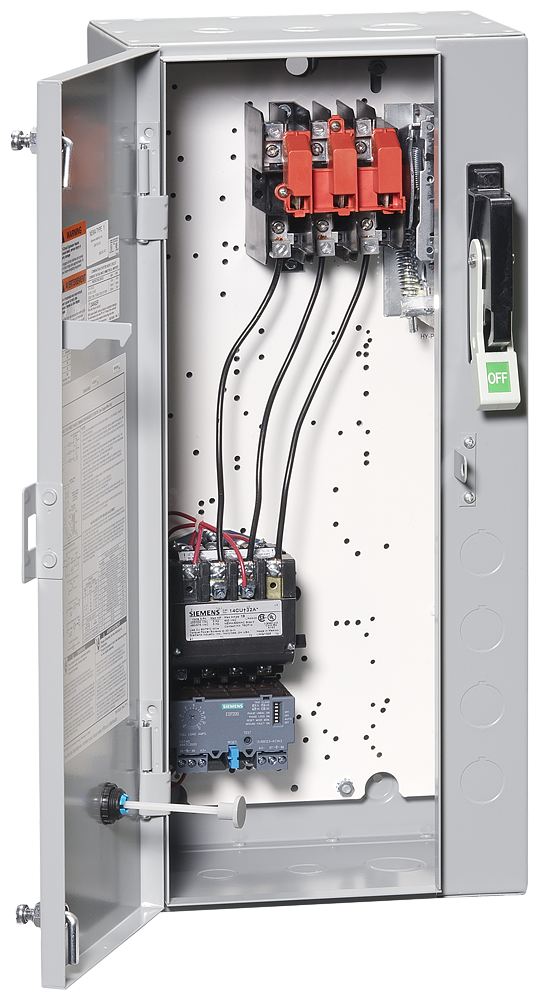

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 17DUA92BH

Jump to: Overview & Specifications Reviews

Overview Details for 17DUA92BH

Specifications

Item Number	17DUA92BH
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
Degree of protection (NEMA)	1
External reset possible	TRUE
freeship	upsground
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	0.25 A
Rated control supply voltage Us at AC 50HZ	380 V
Rated control supply voltage Us at AC 60HZ	440 V
Release class	Other
Voltage type for actuating	AC
Weight	34 LB
With short-circuit release	FALSE
With transformer	FALSE
