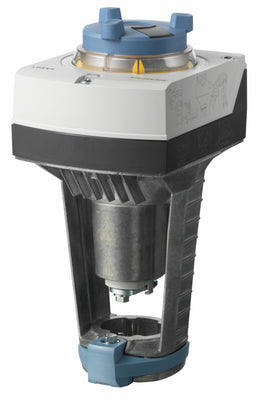

SAV61.00U | PICV Actuator, 24 Vac, 0-10 Vdc or 4-20 mA Prop Control, Non-Spring Return | Siemens

The SAV Valve Actuator is used with PICV Valves with 1-1/2-inch stroke. This electronic valve actuator requires 24 Vac supply to provide 0 to 10 Vdc or 4-20 mA proportional control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 360 lb (1600N) nominal force with 120 sec run time.

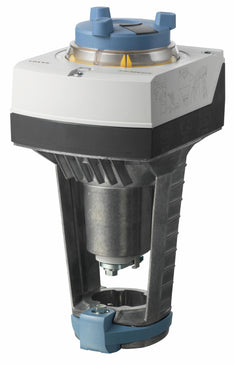

Siemens | SAV61.00U
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SAV61.00U

Overview

Details for SAV61.00U

PICV Actuator, 24 Vac, 0-10 Vdc or 4-20 mA Prop Control, Non-Spring Return

Specifications

Fail Safe
No
Spring return function
Non-spring return functionality
Position feedback
DC 0...10 V (SA..6..)
Power consumption
9.5 VA
Mounting position
Upright to horizontal, up to 150 °C with horizontal mounting position
Operating voltage
24 VAC/DC
Stroke
40 mm, 1.5 " mm
Positioning time
120 s
Stroke, mm
40 mm
Auxiliary switch
Optional
Ambient temperature, operation
-5…55 °C
Degree of protection
IP54
