QPM2102 | Duct Sensor CO2 and VOC, 0 to 10V | Siemens
Duct Sensor for CO2 and Volatile Organic Compounds (VOC) concentrations with a CO2 measuring range over 0 to 2000 parts per million (PPM). This unit delivers a 0 to 10 Volt DC signal. Not suited for safety applications.

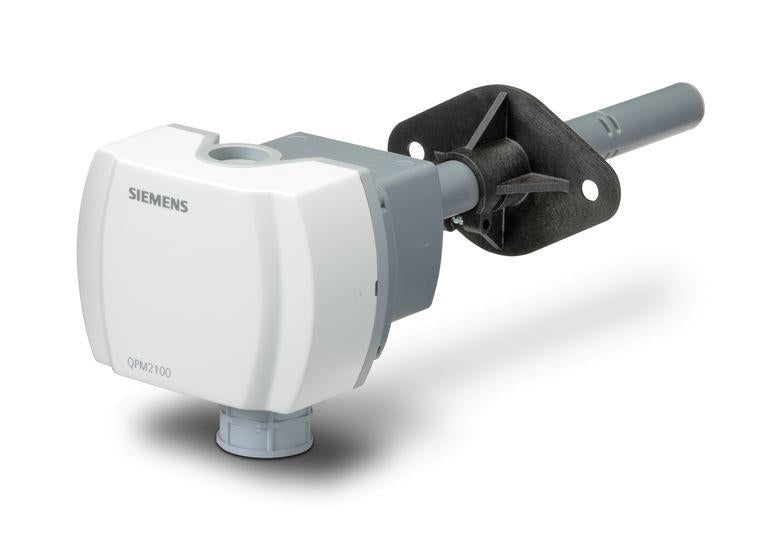

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QPM2102
Documents and manuals
Siemens QPM2102 Documents
Datasheet(QPM Series Indoor Air Quality Duct Sensors Technical Instructions)Datasheet(QPM Series Indoor Air Quality Duct Sensors Technical Specification Sheet)Datasheet(Duct Air Quality Sensors QPM21..)Declaration of conformity(EU Declaration of Conformity QPMxxxx)Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Declaration of conformity(UK Declaration of conformity for QPMxxxx)Declaration of conformity(Test report MTBF for QP..)Declarations and Certificates(OSS Readme for QAE2164.010. QAE2164.015. QAM2161.040. QFM2100. QFM2120. QFM2160. QFM2160U. QFM3100. QFM3160. QFM3160D. QPM2102. QPM2102D. QPM2163. QPM1162. QPM1160)Environmental Declaration(Duct Air Quality Sensor)Installation instruction(QPM… Series Indoor Air Quality Duct Sensors. Installation Instructions)Mounting instruction(Sensor mounting for QPA... QPM..)Mounting instruction(Duct air quality sensor CO2/ temperature / rel. Humidity / VOC QPM11.... QPM21…) Installation Instructions More Info
Overview
Details for QPM2102
Duct Sensor CO2 and VOC, 0 to 10V
Duct Sensor for CO2 and Volatile Organic Compounds (VOC) concentrations with a CO2 measuring range over 0 to 2000 parts per million (PPM). This unit delivers a 0 to 10 Volt DC signal. Not suited for safety applications.Specifications
- Ambient temperature, operation
- -5…45 °C
- Connection, electrical
- Screw terminals
- Degree of protection
- IP54
- Operating voltage
- 24 VAC, 15…35 VDC
- Analog outputs
- 0-10V / 4-20mA (selectable)
- Measuring range
- 0…2000 ppm CO₂, 0…100 % VOC
- Communication
- Secondary output for relative VOC level
- Analog output, signal
- DC 0...10 V, DC 0...5 V, DC 4...20 mA
- Permissible air velocity
- ≤ 10 m/s
- Time constant
- Humidity: 20 s, Temperature: 210 s, CO2: 300 s
