QFM4160 | Duct RH and Temp Sensor, 2 percent certified, RH: 0-10 Vdc, T: 0-10 Vdc | Siemens
This Q-Series Duct Relative Humidity & Temperature Sensor monitors and transmits changes in humidity and temperature to the building control system. This unit is especially suited for applications where precise, stable humidity sensing is required. It has a 2 percent certified accuracy rating, a 0 to 10 Vdc humidity output signal, and a 0 to 10 Vdc temperature signal.

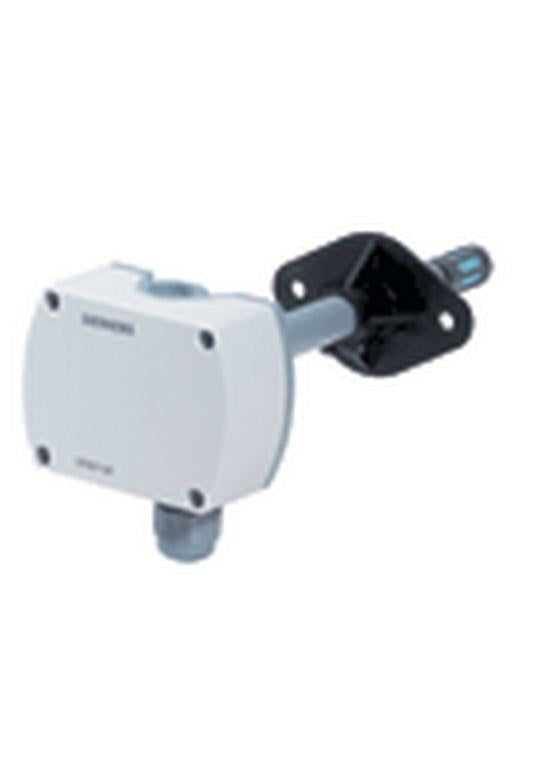

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFM4160
Documents and manuals
Siemens QFM4160 Documents
Datasheet(Duct_sensor QFM41..)Datasheet(Q-Series Duct Relative Humidity and Relative Humidity and Temperature Sensors Technical Specification Sheet)Datasheet(Duct Sensor QFM41xx Series Technical Instructions)Declaration of conformity(EU Declaration of Concormity QFM41xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(UK Declaration of conformity for QFM41xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Environmental Declaration(Duct sensor for relative humidity and temperature)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... with 0…5 V output)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... w/o 0…5 V output) Installation Instructions More Info
Overview
Details for QFM4160
Duct RH and Temp Sensor, 2 percent certified, RH: 0-10 Vdc, T: 0-10 Vdc
Specifications
- Immersion length
- 90…206 mm
- Measurement range humidity
- 0…100 % r.h.
- Measuring range, temperature
- 0…50 °C, -35…35 °C, -40…70 °C
- Time constant
- Humidity: 20 s, Temperature: 20 s, Air v=2 m/s: 210 s
- Signal output humidity
- DC 0...10 V
- Signal output temperature
- DC 0...10 V
- Operating voltage
- 24 VAC, 13.5…35 VDC
- Analog outputs
- 0-10 V
- Measuring range
- Temperature: -40 to 158°F; Humidity: 0 to 100% RH
- Measurement accuracy
- At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
- Communication
- Includes 3-point calibration certificate
- Dimensions (W x H x D)
- 80 x 117 x 39 (274) mm
