QFM3101 | Duct Relative Humidity Sensor, 2 percent accuracy, 4-20 mA | Siemens

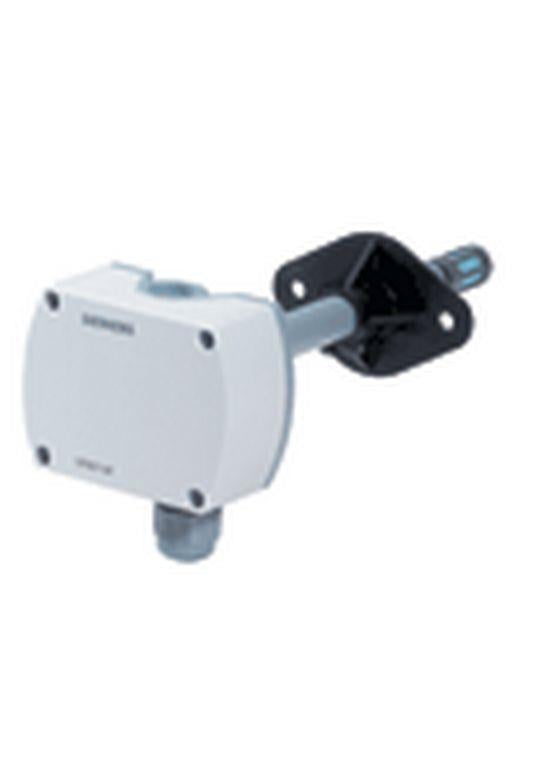

This Q-Series Duct Relative Humidity Sensor monitors and transmits changes in humidity to the building control system. This unit is especially suited for applications where precise, stable humidity sensing is required. It has a 2% accuracy rating and a 4 to 20 milliampere humidity output signal.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFM3101
Documents and manuals
Siemens QFM3101 Documents
Datasheet(Duct_Sensor QFM31... with 0…5 V output)Datasheet(Q-Series Duct Relative Humidity and Relative Humidity and Temperature Sensors Technical Specification Sheet)Datasheet(Duct Sensor QFM31xx Series Technical Instructions)Datasheet(Duct_Sensor QFM31... w/o 0…5 V output)Declaration of conformity(EU Declaration of Conformity QFM31xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(UK Declaration of conformity for QFM31xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Declarations and Certificates(OSS Readme for QAE2164.010. QAE2164.015. QAM2161.040. QFM2100. QFM2120. QFM2160. QFM2160U. QFM3100. QFM3160. QFM3160D. QPM2102. QPM2102D. QPM2163. QPM1162. QPM1160)Environmental Declaration(Duct sensor for relative humidity and temperature)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... with 0…5 V output)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... w/o 0…5 V output) Installation Instructions More Info
Overview
Details for QFM3101
Duct Relative Humidity Sensor, 2 percent accuracy, 4-20 mA
Specifications
- Immersion length
- 90…206 mm
- Measurement range humidity
- 0…100 % r.h.
- Signal output humidity
- DC 4...20 mA
- Operating voltage
- 13.5…35 VDC
- Analog outputs
- 4-20 mA
- Measuring range
- Humidity: 0 to 100% RH
- Measurement accuracy
- At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
- Dimensions (W x H x D)
- 80 x 88 x 39 (274) mm
