QFM2101 | Duct Relative Humidity Temperature Sensor, 5 percent accuracy, 4-20 mA | Siemens

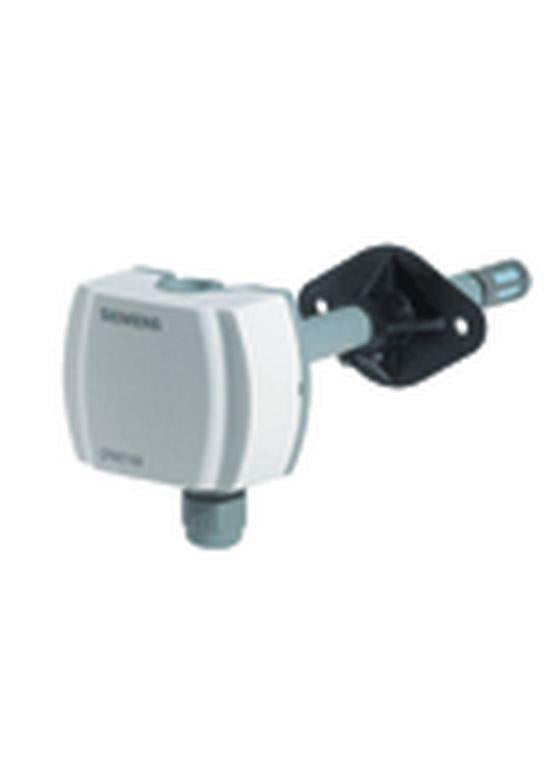

This Q-Series Duct Relative Humidity Sensor monitors and transmits changes in humidity to the building control system. This unit is especially suited for applications where precise, stable humidity sensing is required. It has a 5% accuracy rating and a 4 to 20 milliampere humidity output signal.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFM2101
Documents and manuals
Siemens QFM2101 Documents
Datasheet(Duct sensors QFM21... with 0…5 V output)Datasheet(Q-Series Duct Relative Humidity and Relative Humidity and Temperature Sensors Technical Specification Sheet)Datasheet(Duct Sensors QFM21xx Series Technical Instructions)Datasheet(Duct sensors QFM21... w/o 0…5 V output)Declaration of conformity(EU Declaration of Conformity QFM21xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(KC Certificate QFM2101)Declaration of conformity(UK Declaration of conformity for QFM21xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Declarations and Certificates(OSS Readme for QAE2164.010. QAE2164.015. QAM2161.040. QFM2100. QFM2120. QFM2160. QFM2160U. QFM3100. QFM3160. QFM3160D. QPM2102. QPM2102D. QPM2163. QPM1162. QPM1160)Environmental Declaration(Duct sensor for relative humidity and temperature)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... with 0…5 V output)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... w/o 0…5 V output) Installation Instructions More Info
Overview
Details for QFM2101
Duct Relative Humidity Temperature Sensor, 5 percent accuracy, 4-20 mA
Specifications
- Immersion length
- 90…154 mm
- Measurement range humidity
- 0…95 % r.h.
- Time constant
- Humidity: 20 s, Air v=2 m/s: 210 s
- Signal output humidity
- DC 4...20 mA
- Operating voltage
- 13.5…35 VDC
- Analog outputs
- 4-20 mA
- Measuring range
- Humidity: 0 to 95% RH
- Measurement accuracy
- At 15…35 °C: ±0.6 K, 23 % r.h., 30…70 % r.h.: ±3 % r.h.
- Dimensions (W x H x D)
- 80 x 88 x 39 (222) mm
