Documents: MXG461B15-0.6

Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN15..25)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 15. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 15. 3D drawings. stp format) More Info

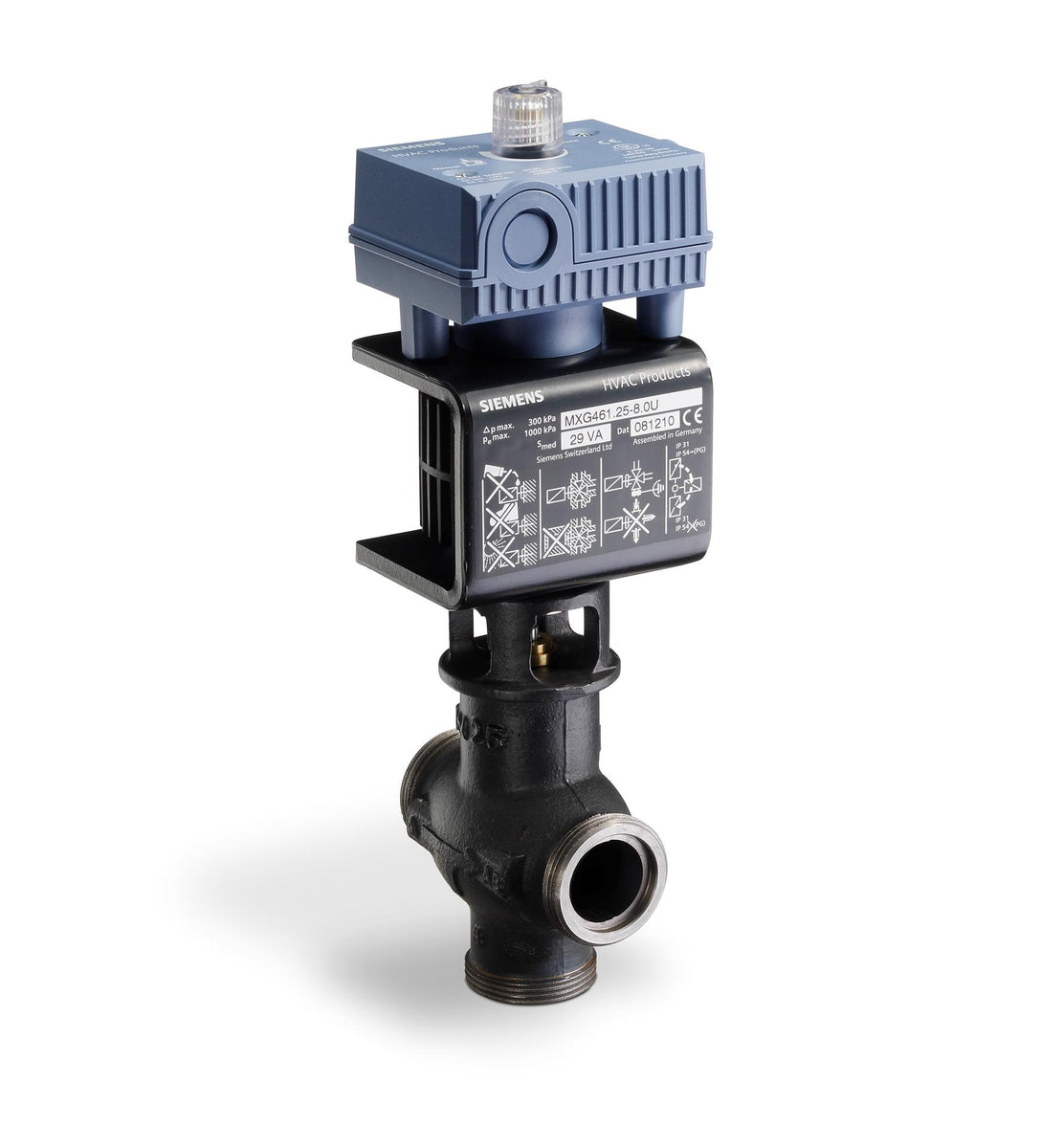

MXG461B15-0.6 | Magnetic, 1/2" Valve 2-way or floating, 0.7 Cv, 0 to 10V control, w/ fittings | Siemens

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of domestic (potable) water, chilled water and hot water systems. This 1/2" valve can be configured for straight-through or floating applications and has a 0.7 Cv and 145 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 2 seconds, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and cUL listed.

Brand: SiemensSKU: MXG461B15-0.6

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MXG461B15-0.6

Jump to: Overview & Specifications Reviews

Overview Details for MXG461B15-0.6

Magnetic, 1/2" Valve 2-way or floating, 0.7 Cv, 0 to 10V control, w/ fittings

Specifications

Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Leakage rate bypass: 0.2 % of kvs
Medium: Water
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Red brass CC499K (Rg5)
Δp_s: 1000 kPa
Connecting thread: G 1" B
Ambient temperature, operation: -5…45 °C
Connecting thread: G 1 B "
Degree of protection: IP31
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Red brass CC491K, low-lead amount
Medium temperature: -20…130 °C; -4…266 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 20…30 VDC
Permissible operating pressure: 1600 kPa
Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A->AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 1000 kPa
Dimensions (W x H x D): 6.18 x 15.06 x 3.98 in
Product conformity: DVGW approved
k_vs: 0.6 m³/h
DN: 15
