MXG461.15-1.5U | Magnetic, 1/2" Valve, 2-way or floating 1.8 Cv, 0-10V control, w/ NPT unions | Siemens
This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. The valve can be configured for straight-through or 3-Way applications and has 1/2" line size, 1.8 Cv and 72 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.

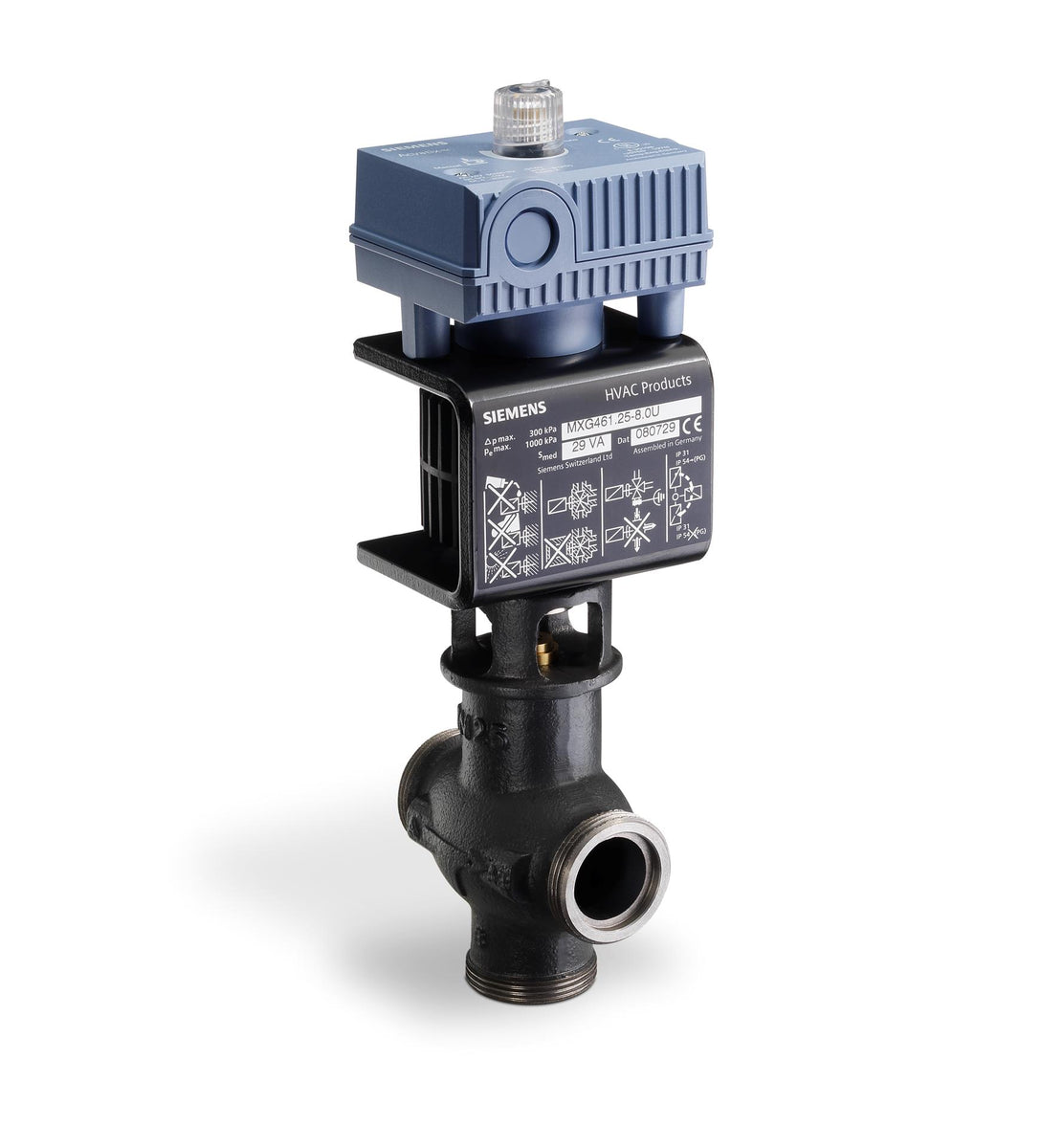

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MXG461.15-1.5U
Documents and manuals
Overview
Details for MXG461.15-1.5U
Magnetic, 1/2" Valve, 2-way or floating 1.8 Cv, 0-10V control, w/ NPT unions
Specifications
- Medium
- Water
- Medium temperature
- 34…266 ºF
- Dimensions (W x H x D)
- 3 x 11 x 3 in
