MVL661.32-12 | 1-1/4
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$1,408.31
Availability: This product is currently available to purchase
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Speak With a Technical Expert

Image for Technical Expert

Hours: 9am - 5pm CDT M-F

Call (847) 773-0645 Email Technical Expert

Documents: MVL661.32-12

Datasheet(Modulating refrigerant valves. PS45. MVL661..-..)Datasheet(MVL661...Series Modulating Refrigerant Valves with Magnetic Actuator Technical Instructions)Declaration of conformity(CE Declaration MVL661..)Declaration of conformity(RCM Suplier's Declaration MVL661…)Declaration of conformity(Test report EN 10204 (type 2.2). MVL661..-..)Declaration of conformity(Refrigerant valves MVL661..)Environmental Declaration(Modulating refrigerant valves. PS45. MVL661... DN32)Mounting instruction(Modulating refrigerant valves / Stetige Kältemittelventile PS45. MVL661..)Dimension Drawings(2-port refrigeration valve. MVL661... DN 32. 3D drawings. stp format) More Info

MVL661.32-12 | 1-1/4"refrigeration Valve | Siemens

Hermetically sealed 2-port valves for 0 to 10V control
of chillers and heat pumps.
-Expansion, hot-gas and suction throttle applications with one type of valve
-PN40, stainless steel with soldering connections
-Integrated power electronics with positioning control
-For safety refrigerants such as R22, R134a, R404A, R407C, R744

Brand: SiemensSKU: MVL661.32-12

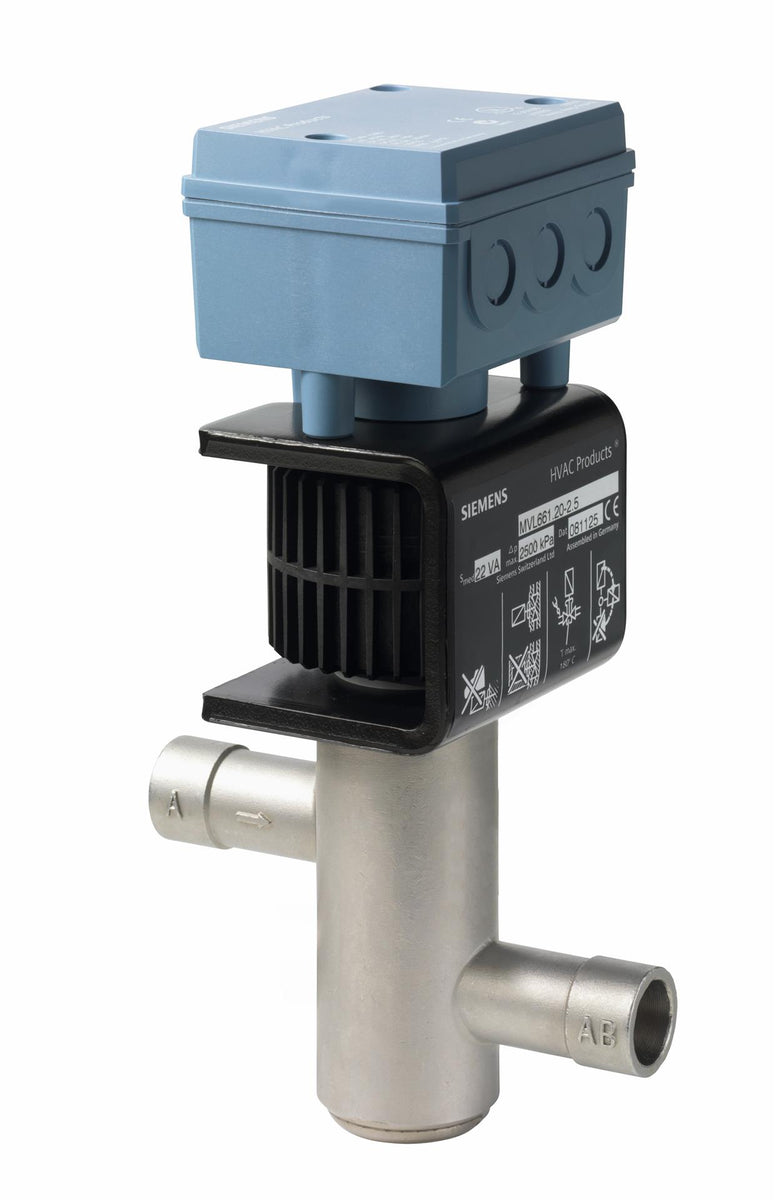

Siemens | MVL661.32-12
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MVL661.32-12
Jump to: Overview & Specifications Reviews

Overview Details for MVL661.32-12

1-1/4"refrigeration Valve

Specifications

Ambient temperature, operation
-25…55 °C
Degree of protection
IP65
kvs
12 m³/h
kvs reduced
8 m³/h
Leakage rate
0.002 % of kvs
Material, inside set
CrNi steel/brass
Material, valve body
Steel/ CrNi steel
Medium temperature
-40…120 °C; -40…248 ºF
Mounting position
Upright to horizontal
Operating voltage
24 VAC, 20…30 VDC
Permissible operating pressure
4500 kPa
Position feedback
DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal
DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
Positioning time
1 s
Spring return function
A->AB closed
Valve characteristic
Linear
Δpmax
200 kPa
Operating range
DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Stroke resolution ΔH/H100
1:1000
Material, valve body
Steel / CrNi steel
Dimensions (W x H x D)
7.48 x 12.24 x 4.02 in
DN
32
