M2FP03GX | Refrigerator Pilot Valve | Siemens

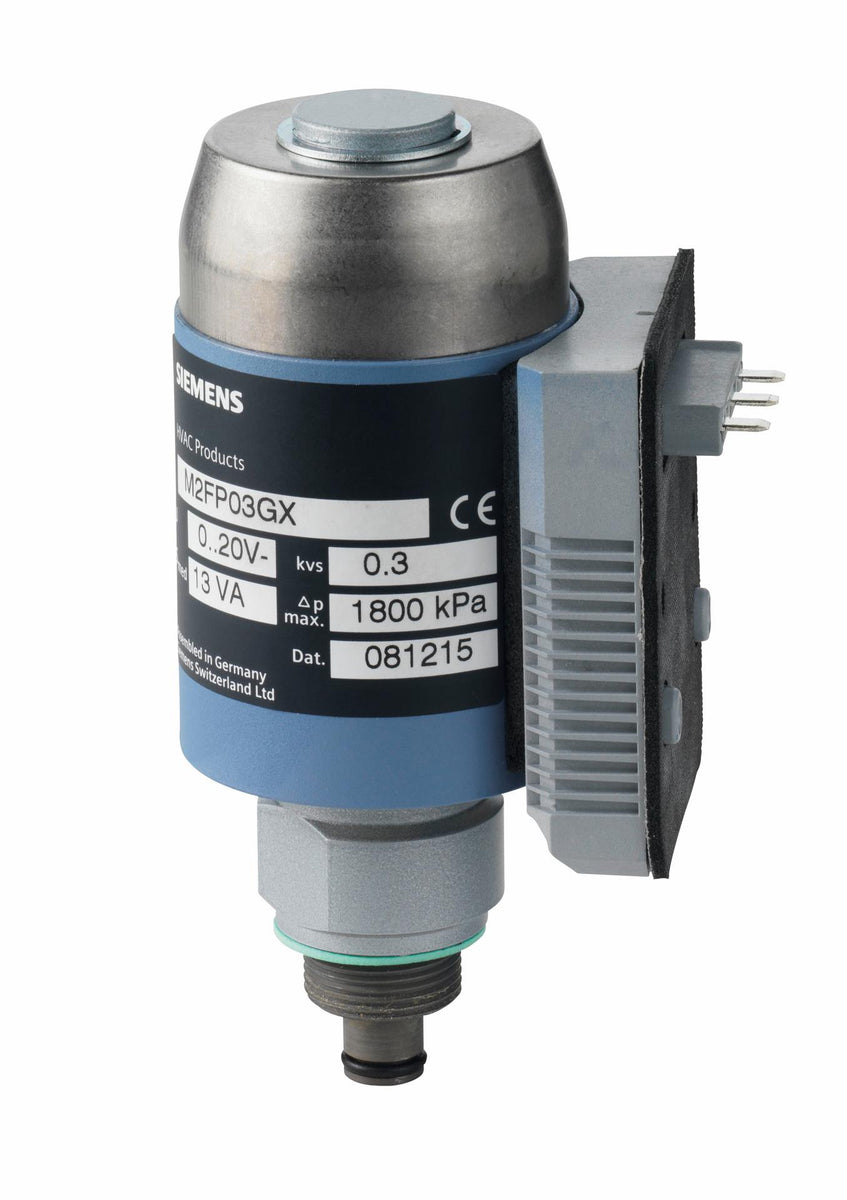

This Staefa Magnetic M2FP.. Is a Refrigerator Pilot Valve.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M2FP03GX
Documents and manuals
Siemens M2FP03GX Documents
Datasheet(Modulating pilot valve. PN32. M2FP..)Datasheet(M2FP03GX Modulating Pilot Valve to Control Main Valves Technical Instructions)Declaration of conformity(CE declaration M2FP03GX)Declaration of conformity(Test report EN 10204 (type 2.2). M2FP03GX)Mounting instruction(Modulating pilot valve for main valve control / Stetige Regelventile für Hauptventile PN40. M2FP03GX) More Info
Overview
Details for M2FP03GX
Refrigerator Pilot Valve
This Staefa Magnetic M2FP.. Is a Refrigerator Pilot Valve.Specifications
- Ambient temperature, operation
- -40…50 °C
- Degree of protection
- IP54
- kvs
- 0.3 m³/h
- Leakage rate
- 0.25 % of kvs
- Material, inside set
- CrNi steel
- Material, valve body
- Steel
- Medium temperature
- -40…100 °C; -40…212 ºF
- Mounting position
- Any
- Nominal pressure
- PN 32
- Operating voltage
- 24 VAC
- Permissible operating pressure
- 3200 kPa
- Positioning signal
- DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 1 s
- Power consumption
- 13 VA
- Spring return function
- Closed
- Valve characteristic
- Linear
- Δpmax
- 1800 kPa
- Stroke resolution ΔH/H100
- 1:200
- Material, valve body
- Steel
- Dimensions (W x H x D)
- 4.41 x 5.87 x 2.66 in
